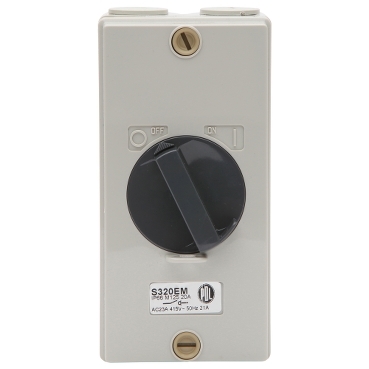

S Series Enclosed Main Switch 1-Way 20A 240V 3P IP66, Grey

S Series Enclosed Main Switch 1-Way 20A 240V 3P IP66, Grey

Item Number: PDLS320EM

Datasheet

Product Dimensions

Width icon

Width82 mm

Height icon

Height165 mm

Depth icon

Depth81 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

S Series

Product or component type

switch

Colour tint

white

Surface finish

gloss

Physical

Installation direction

vertical

Width

82 mm

Height

165 mm

Depth

81 mm

Rated current

20 A

[ue] rated operational voltage

415 V

Number of poles

3

Mounting mode

surface mounted

Ip degree of protection

IP66

Quantity per set

set of 1

Type of packing

carton

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Commercial status history

SESA301466 | Thu Jul 27 22:37:00 EDT 2023 | From Import Local | From 08 to 19

Network frequency

50 Hz

Motor m-rating as3133

M125

Cable cross section

16 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8 cm

Package 1 width

8.5 cm

Package 1 length

17 cm

Package 1 weight

0.474 kg

Unit type of package 2

CAR

Number of units in package 2

10

Package 2 height

18.8 cm

Package 2 width

17.7 cm

Package 2 length

41.7 cm

Package 2 weight

5000.0 g

Unit type of package 3

PAL

Number of units in package 3

480

Package 3 height

112.8 cm

Package 3 width

70.8 cm

Package 3 length

83.4 cm

Package 3 weight

240000.0 g
