Specifications
Design
| Range of product | S Series |
|---|---|

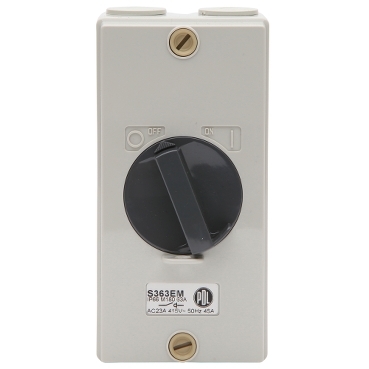

| Product or component type | switch |
| Colour tint | white |
| Surface finish | gloss |
Physical
| Installation direction | vertical |
|---|---|
| Width | 82 mm |
| Height | 165 mm |
| Depth | 81 mm |
| Rated current | 63 A |
| [ue] rated operational voltage | 415 V |
| Number of poles | 3 |
| Mounting mode | surface mounted |
| Ip degree of protection | IP66 |
| Quantity per set | set of 1 |
| Type of packing | carton |
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2106012_V1 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | X |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|
