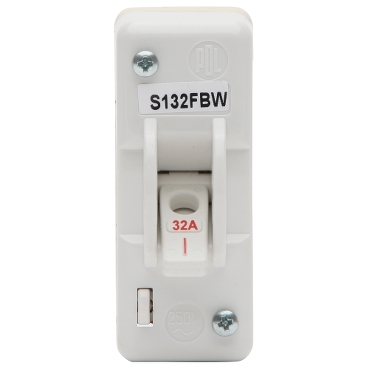

S Series Enclosed Main Switch 32A, 240VAC, 50Hz, 1-Pole, 1-Way

Item Number: PDLS132FBW

1 PCE 1

Where To Buy

Datasheet

Download

Product Dimensions

Width28.4 mm

Height70 mm

Depth51 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175139659	-

Specifications

Design

Range of product

S Series

Product or component type

switch

Surface finish

gloss

Physical

Installation direction

vertical

Width

28.4 mm

Height

70 mm

Depth

51 mm

Rated current

32 A

[ue] rated operational voltage

250 V

Number of poles

Mounting mode

surface mounted

Ip degree of protection

IP66

Quantity per set

set of 10

Type of packing

carton

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Material

Material

PC (polycarbonate)

Others

Legacy weee scope

Package 1 bare product quantity

Weee label

N/A

Outside of Europe

Network frequency

50 Hz

Cable cross section

25 mm²

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

7.1 cm

Package 1 width

3 cm

Package 1 length

4.6 cm

Package 1 weight

83.5 g

Sustainable packaging

Warranty (in months)

Show all specifications
