Saturn Series Dimmer Universal Mechanism 450W, 250VAC | Transparent

Item Number: 4062E450UDM-TR

Transparent 1 PCE 1

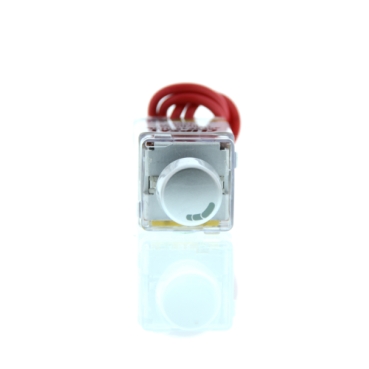

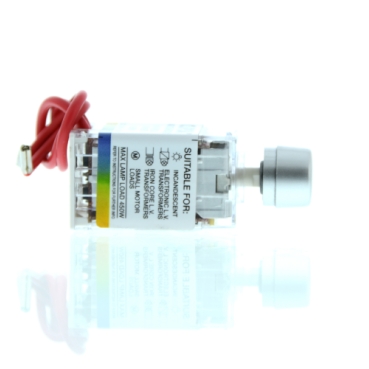

Dimmer module with rotary knob. Requires separate switch. 60 Series module. Suitable for Clipsal Saturn. Colour: Translucent For universal load types including dimmable LED. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Where To Buy

Datasheet

Download

Product Dimensions

Width75 mm

Height116 mm

Embedding depth34 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554683252	TR

Specifications

Design

Range of product	C-Thru Saturn Series 4000
Product brand	Clipsal

Physical

Device presentation	basic element
Dimmer type	universal
Mounting support	wall
Width	75 mm
Height	116 mm
Depth	56 mm
Embedding depth	34 mm
Standards	AS/NZS CISPR 15:2002 AS/NZS 3100 IEC 60669-2-1
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1607003_V2
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Power consumption in va	450 VA
Network frequency	50 Hz
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3 cm
Package 1 width	5.1 cm
Package 1 length	9.4 cm
Package 1 weight	34 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	3 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.23028336000000002
Carbon footprint of the manufacturing phase [a1 to a3]	0.2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.00543864
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.008253024000000001
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	3.173200000000001
Carbon footprint of the use phase [b2, b3, b4, b6]	3 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.07295584000000001
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Product contains halogen above thresholds
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	3.490130864000001
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	1
Halogen-free status	Product contains halogen above thresholds
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
