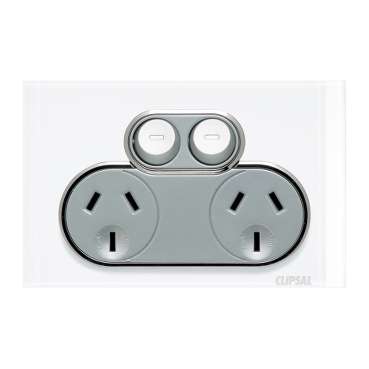

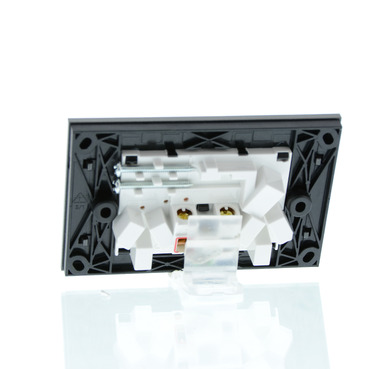

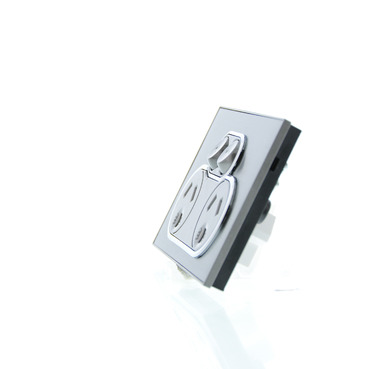

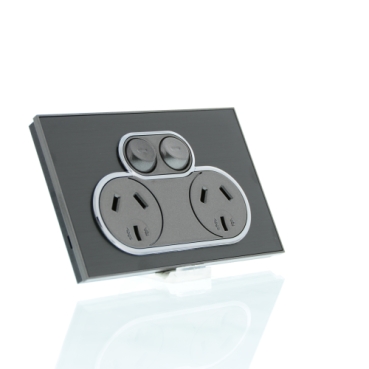

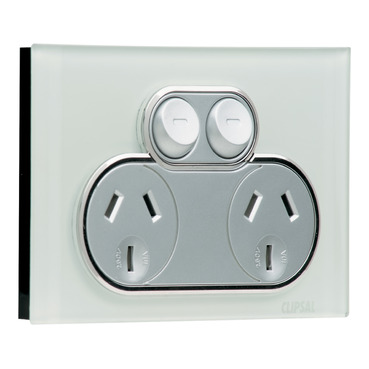

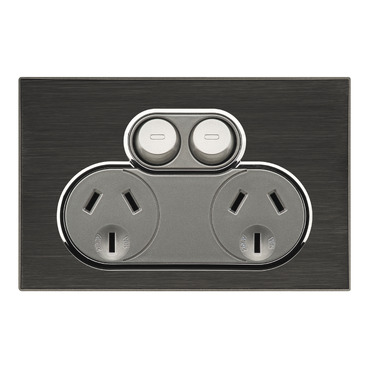

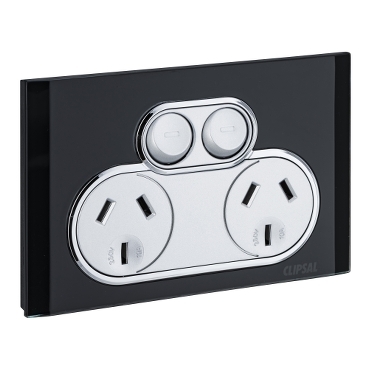

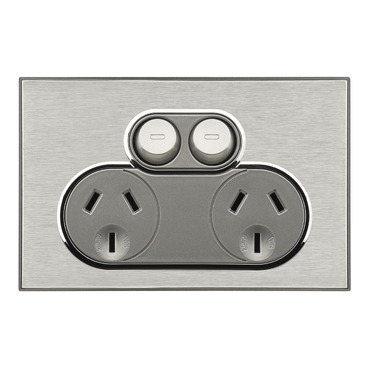

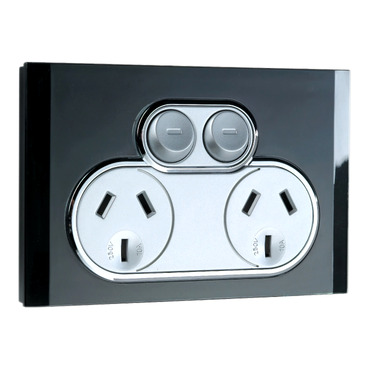

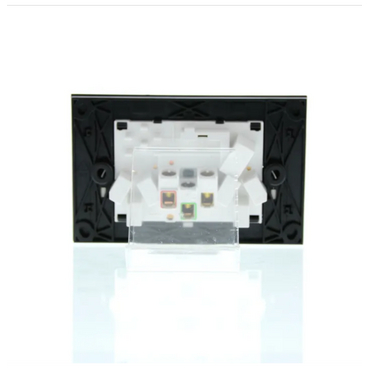

Saturn Series, Double Switch Power Point, 250V, 10A

Saturn Series, Double Switch Power Point, 250V, 10A Pure White

Item Number: 4025-PW

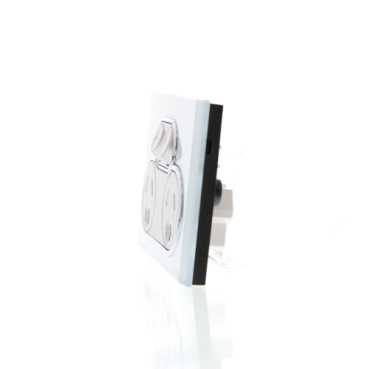

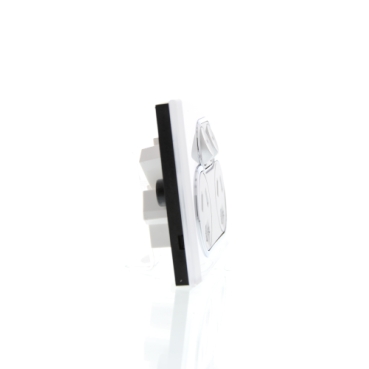

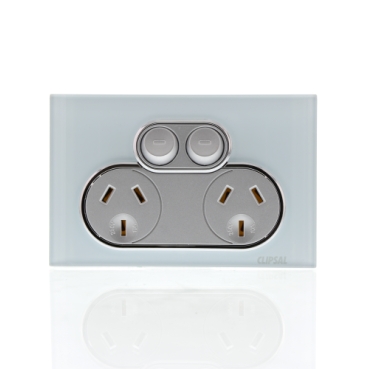

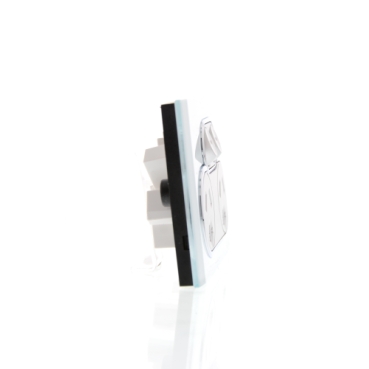

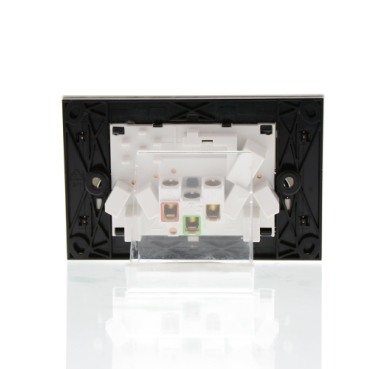

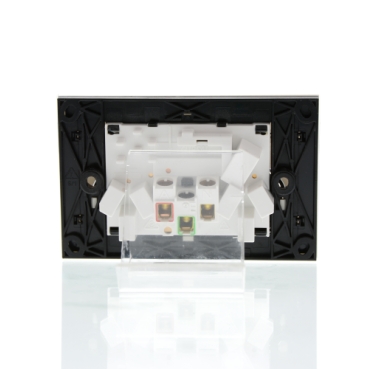

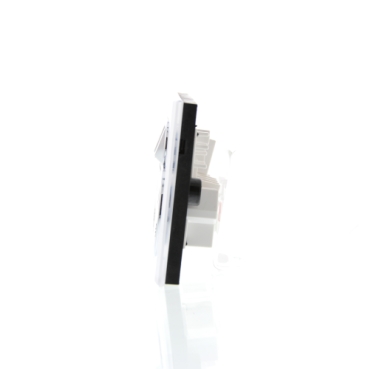

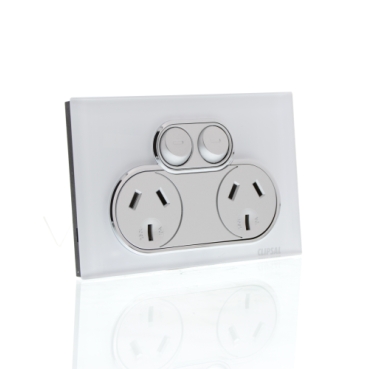

Socket outlet assembly for horizontal installations. Twin switched socket. Saturn cover and socket grid are included. Clipsal Saturn Horizon. Colour: Horizon Silver Rated current: 10A Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Datasheet

Product Dimensions

Width icon

Width116 mm

Height icon

Height75 mm

Embedding depth icon

Embedding depth15 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Saturn Series

Product brand

Clipsal

Surface finish

glossy

Physical

Control type

ON/OFF button

Number of gangs

2 gangs

Pin number

3

Number of power socket outlets

2

Actuator

rocker|switch

Fixing mode

by screws

Local signalling

without light indicator

Mounting position

horizontal

[ue] rated operational voltage

250 V AC

[in] rated current

10 A

Embedding depth

15 mm

Depth

29 mm

Height

75 mm

Length

116 mm

Width

116 mm

Fixing center

84 mm

Product certifications

RCM

Standards

AS/NZS 3100|AS/NZS 3112|AS/NZS 3133

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

plastic

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.7 cm

Package 1 width

8.6 cm

Package 1 length

12.9 cm

Package 1 weight

136 g

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

9.0839718957
Show all specifications

Frequently Asked Questions

hide show

What is the cut out size for Z4025, Zen series double outlet?

Please use the attached template for Z4025 cutout.User-added image
Please go to the following links below and check under the Documentation Tab for more information.
