Saturn Series Flush Switch 1 Gang, 250V, AC,45A, Push Button

Home ProductsSwitches and SocketsSaturn SeriesFlush Switch

Saturn Series Flush Switch 1 Gang, 250V, AC,45A, Push Button | Espresso Black

Item Number: 4061/45-EB

Cooker switch assembly. Single-pole switch. Assembled with plate. Clipsal Saturn Horizon. Colour: Horizon Silver Rated current: 45A. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width75 mm

Height icon

Height116 mm

Embedding depth icon

Embedding depth23 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Saturn Series 4000

Product brand

Clipsal

Physical

Device presentation

basic element

Number of poles

1

Device mounting

flush

Local signalling

without

[ue] rated operational voltage

250 V AC

Rated current

45 A

Marking

without marking

Fixing mode

by screws

Height

116 mm

Width

75 mm

Depth

37 mm

Embedding depth

23 mm

Switch function

1-pole

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

5

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Finished product

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.5 cm

Package 1 width

9.5 cm

Package 1 length

12.3 cm

Package 1 weight

256 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

12.6 cm

Package 2 width

10 cm

Package 2 length

36.6 cm

Package 2 weight

1.398 kg

Sustainable packaging

No

Pvc free

Yes

Halogen-free status

Product contains halogen above thresholds

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Halogen-free status

Product contains halogen above thresholds

Pvc free

Yes

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • Installation Instruction

  • Specification Guide

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Revit Pack Saturn Series
ZIP

Revit Pack Saturn Series

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 4 MB
Saturn Collection - new Saturn finish on the Horizon, 22489
ZIP

Saturn Collection - new Saturn finish on the Horizon, 22489

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 701.8 KB
Saturn Series Brochure
ZIP

Saturn Series Brochure

VERSION

1.0

DATE

29 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.6 MB
Installation Instructions - F2461/01 - Clipsal Saturn Socket Outlets Fascia Removal Instructions, 118261
ZIP

Installation Instructions - F2461/01 - Clipsal Saturn Socket Outlets Fascia Removal Instructions, 118261

VERSION

1.0

DATE

02 Nov 2023

REVISION

1.0

DOWNLOAD (ZIP) 600.9 KB
Clipsal Saturn Range Switches 4000 Series 20A/16AX 250V a.c.
ZIP

Clipsal Saturn Range Switches 4000 Series 20A/16AX 250V a.c.

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 969.9 KB

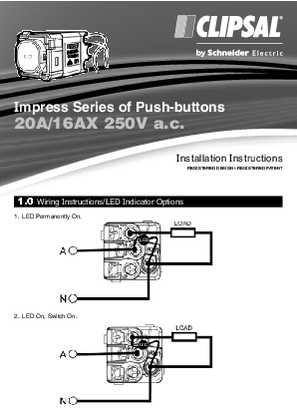

Installation Instructions - F2043/02 - Impress Series of Push Buttons 20A/16AX 250V a.c.,18169
ZIP

Installation Instructions - F2043/02 - Impress Series of Push Buttons 20A/16AX 250V a.c.,18169

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 146.5 KB

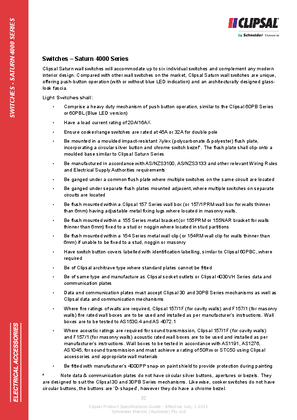

Technical Specifications - Switches - Saturn 4000 Series
ZIP

Technical Specifications - Switches - Saturn 4000 Series

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 181.9 KB

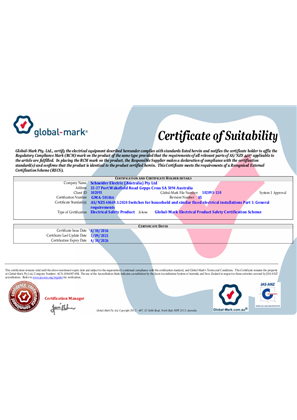

CS_GMA-501066-Rev05--3041_45 and PDL347VH and 4061_45 Cooker switch
