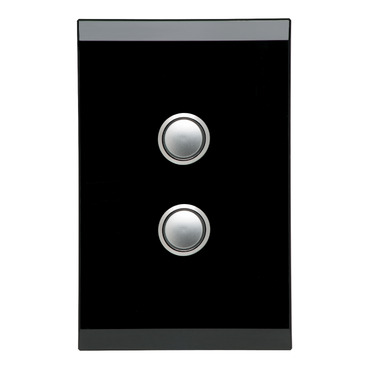

Saturn Series Push Button Switch LED 2 Gang, 250V, 16AX/20A

Home ProductsSwitches and SocketsSaturn SeriesPush Button Switch LED

Saturn Series Push Button Switch LED 2 Gang, 250V, 16AX/20A | Espresso Black

Item Number: 4062PBL-EB

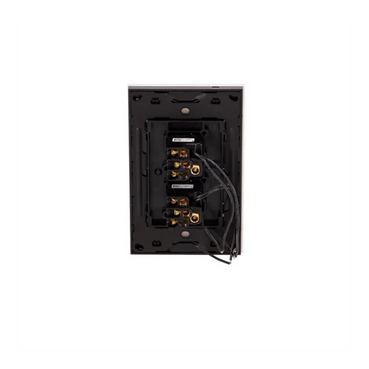

Switch assembly with LED indicator. Saturn cover plate, grid and switch mechanism are included. Suitable for 2-gang vertical installations. Assembled with plate. Clipsal Saturn Horizon. Colour: Horizon Silver Rated current: 20A / 16AX. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width75 mm

Height icon

Height116 mm

Embedding depth icon

Embedding depth31.6 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Saturn Series 4000

Product or component type

push-button

Product brand

Clipsal

Surface finish

glossy

Physical

Device presentation

basic element with full cover plate

Actuator

push-button

Number of gangs

2 gangs

Local signalling

indicator light

Fixing mode

by screws

[ue] rated operational voltage

250 V AC

Inrush current

20 A

Height

116 mm

Depth

43.6 mm

Embedding depth

31.6 mm

Width

75 mm

Mounting position

vertical

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1607003EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

PVC (polyvinyl chloride)

Others

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

Legacy weee scope

In

Outside of Europe

Weee label

N/A

Weee applicability

Finished product

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.6 cm

Package 1 width

11.7 cm

Package 1 length

7.6 cm

Package 1 weight

206 g

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

5 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

1.3952462399999999

Carbon footprint of the manufacturing phase [a1 to a3]

1 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.03295176

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.050003616

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

3.173200000000001

Carbon footprint of the use phase [b2, b3, b4, b6]

3 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.44202656

Carbon footprint of the end-of-life phase [c1 to c4]

0.4 kg CO2 eq.

Pvc free

Yes

Halogen-free status

Product contains halogen above thresholds

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

5.0934281760000015

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Halogen-free status

Product contains halogen above thresholds

Pvc free

Yes

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications
