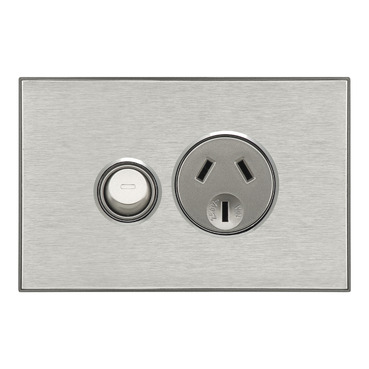

Saturn Series Single Switch Power Point 250V 10A | Horizon Silver
Item Number: 4015-HS
Socket outlet assembly for horizontal installations. Single switched socket. Saturn cover and socket grid are included. Clipsal Saturn Horizon. Colour: Horizon Silver Rated current: 10A Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.
Specifications
Design
| Range of product | Saturn Series |
|---|---|
| Product brand | Clipsal |
| Surface finish | glossy |
Physical
| Control type | ON/OFF button |
|---|---|
| Number of gangs | 1 gang |
| Pin number | 3 |
| Number of power socket outlets | 1 |
| Actuator |
|
| Fixing mode | by screws |
| Local signalling | without light indicator |
| Mounting position | horizontal |
| [ue] rated operational voltage | 250 V AC |
| [in] rated current | 10 A |
| Embedding depth | 22 mm |
| Depth | 36 mm |
| Height | 75 mm |
| Length | 116 mm |
| Width | 116 mm |
| Fixing center | 84 mm |
| Product certifications | RCM |
| Standards |
|
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP120506EN |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | plastic |
|---|
