Saturn Series Switch Assembled, LED indicator, Architrave, 1-gang, 250V, 20A/16AX | Horizon Silver
Item Number: 4061AL-HS
Switch assembly with LED indicator. Saturn cover plate, grid and switch mechanism are included. Suitable for 1-gang architrave installations. Assembled with plate. Clipsal Saturn Horizon. Colour: Horizon Silver Rated current: 20A / 16AX. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.
Specifications
Design
| Range of product | Saturn Series 4000 |
|---|---|
| Product or component type | push-button |
| Product brand | Clipsal |
| Surface finish | glossy |
Physical
| Device presentation | basic element with full cover plate |
|---|---|
| Actuator | push-button |
| Local signalling | indicator light |
| Fixing mode | by screws |
| [ue] rated operational voltage | 250 V AC |
| Inrush current | 20 A |
| Height | 97.5 mm |
| Depth | 43.6 mm |
| Embedding depth | 31.6 mm |
| Width | 34 mm |
| Mounting position | vertical |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1607003EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PVC (polyvinyl chloride) |
|---|
Documents & downloads
-
All
-
CAD Files and Packs
-
Product Brochures
-
Technical Data Catalogues
-
Environmental Disclosure
-
Installation Instruction
-
Specification Guide
-

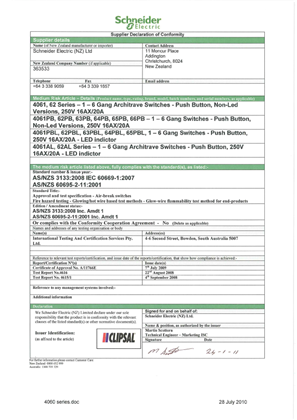

Declaration of Conformity
-
