Saturn Series Switch Grid and Cover Assembly 2 Gang, Less Mechanism

Home ProductsSwitches and SocketsSaturn SeriesSwitch Grid and Cover Assembly

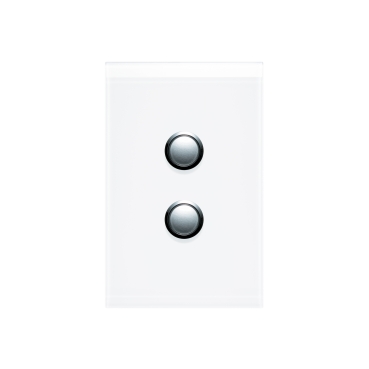

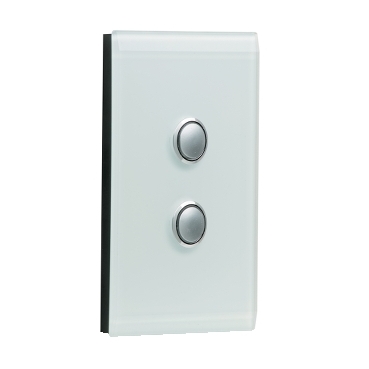

Saturn Series Switch Grid and Cover Assembly 2 Gang, Less Mechanism | Pure White

Item Number: 4062VH-PW

Switch grid and cover. Switch mechanisms are purchased separately. Suitable for 2-gang vertical installations. Clipsal Saturn Horizon. Colour: Horizon Silver

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width75 mm

Height icon

Height116 mm

Depth icon

Depth12 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Saturn Series 4000

Product brand

Clipsal

Product destination

  • push-button
  • switch

Physical

Marking

without marking

Mounting position

vertical

Width

75 mm

Height

116 mm

Depth

12 mm

Number of gangs

2 gangs

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP120506EN_V2

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope

Eu rohs directive

Compliant

China rohs regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Outside of Europe

Warranty duration(in months) bmecat

18

Weee label

N/A

Weee applicability

Component

Weee exclusion rationale

Component not in scope – non independent function

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.5 cm

Package 1 width

9 cm

Package 1 length

12 cm

Package 1 weight

163 g

Total lifecycle carbon footprint

4 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

1.28939373737

Carbon footprint of the manufacturing phase [a1 to a3]

1 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.13973518518519

Carbon footprint of the distribution phase [a4]

0.1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.245773814814815

Carbon footprint of the installation phase [a5]

0.2 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0.48673

Carbon footprint of the use phase [b2, b3, b4, b6]

0.5 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.234895747474

Carbon footprint of the end-of-life phase [c1 to c4]

0.2 kg CO2 eq.

Pvc free

No

Halogen-free status

Halogen free product

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

4.264623333333333

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

China rohs label

1

Halogen-free status

Halogen free product

Pvc free

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
