Saturn Series, Switch Mechanisms Push-Button, 250V, 16AX/20A, 1 Way, 2 Way, LED

Item Number: 60PBL

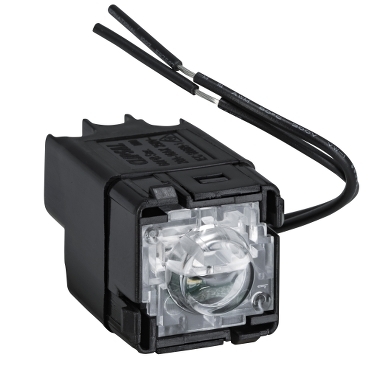

Switch mechanism with push-button and LED indicator. One-way or two-way switching is available. 60 Series mechanism. Suitable for Clipsal Saturn. Rated current: 20A / 16 AX. Operating voltage 250V a.c. 50Hz. Note: Requires installation by an appropriately licenced electrician.

Datasheet

Product Dimensions

Width icon

Width23.5 mm

Height icon

Height23.5 mm

Embedding depth icon

Embedding depth31.6 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Saturn Series 4000

Product or component type

push-button

Product brand

Clipsal

Colour tint

black

Surface finish

glossy

Sustainable offer status

Green Premium product

Physical

Device presentation

basic element

Actuator

push-button

Local signalling

indicator light

Fixing mode

by screws

[ue] rated operational voltage

230/240 V AC

Inrush current

20 A

Height

23.5 mm

Depth

40 mm

Embedding depth

31.6 mm

Width

23.5 mm

Mounting position

vertical

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

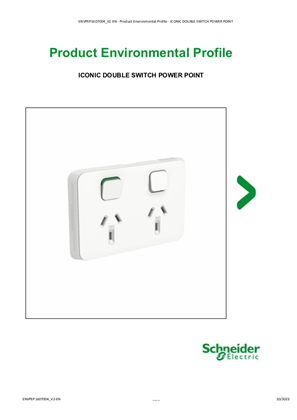

Environmental disclosure

ENVPEP1708008EN

Circularity profile

ENVEOLI1708008EN

Material

Material

plastic

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.2 cm

Package 1 width

3.2 cm

Package 1 length

6.6 cm

Package 1 weight

24 g
Show all specifications

Documents & downloads

hide show

Frequently Asked Questions

hide show

Can I get an intermediate Saturn series mech with an LED?

No, these are not saturn PBL Blue LED intermediate switch available, but you can create one using a 2 way standard 60PBL 2 way push switches with LED's switch using a PDL600RM relay, as per the attached wiring diagram.
