Home ProductsSwitches and SocketsSaturn ZenPush Button Architrave Switch

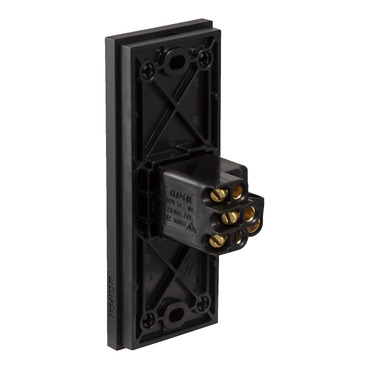

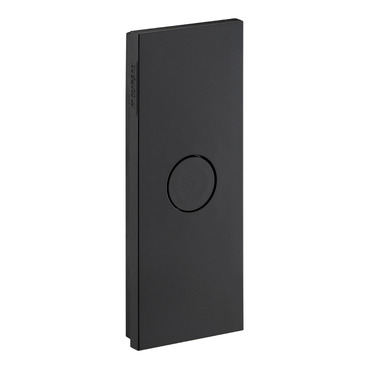

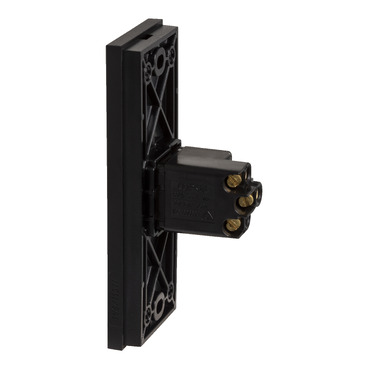

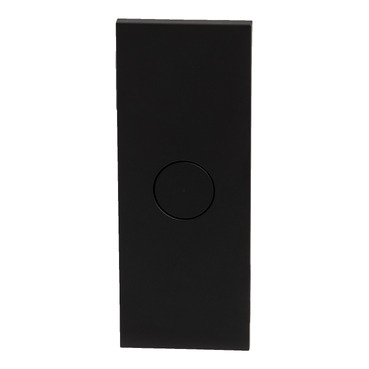

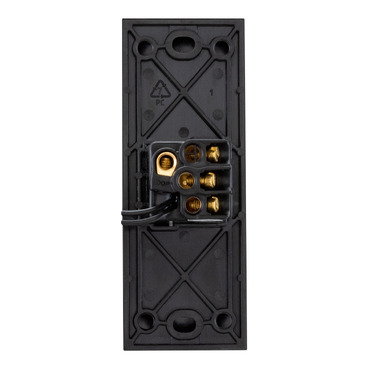

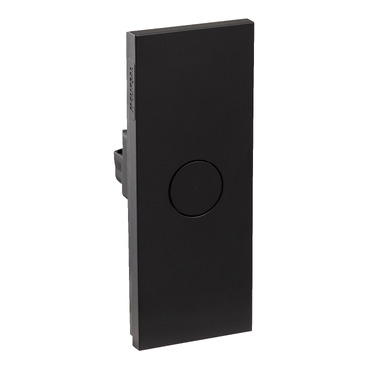

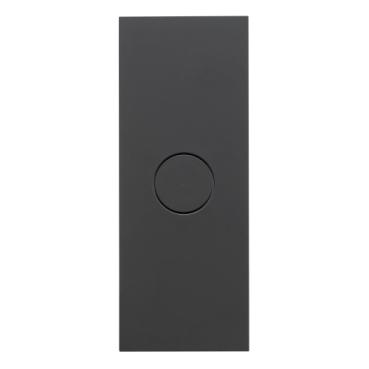

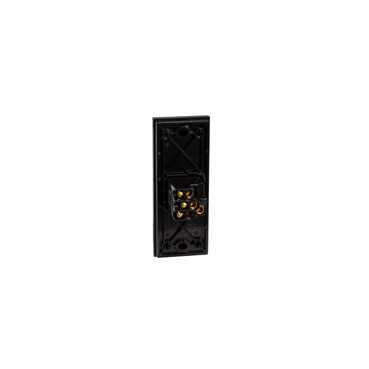

Saturn Zen Push Button Architrave Switch LED, 1 Gang, 250V, 16AX/20A | Zen White

Item Number: Z4061AL-ZW

Zen White 1 PCE 1
Zen Black 1 PCE 1

Switch assembly with LED indicator. Saturn Zen cover plate, grid and switch mechanism are included. Suitable for 1-gang installations. Assembled with plate. Clipsal Saturn Zen. Colour: Zen White Rated current: 20A / 16AX. Operating voltage 250V a.c. 50Hz. Note: Requires installation by an appropriately licenced electrician.

Where To Buy

Datasheet

Download

Product Dimensions

Width34 mm

Height97.5 mm

Embedding depth31.6 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554773526	ZW
1	PCE	9311554773533	ZB
10	BB1	9311554777586	ZB

Specifications

Design

Range	Clipsal
Colour tint	zen white
Product brand	Clipsal
Range of product	Saturn
Product or component type	switch

Physical

Number of gangs	1 gang
Width	34 mm
Height	97.5 mm
Depth	43.6 mm
[in] rated current	20 A
Embedding depth	31.6 mm
Switch function	1-pole 2-way
Number of rocker	1
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP120506EN_V2
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	10
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Main colour tint	zen white
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.1 cm
Package 1 width	4.6 cm
Package 1 length	11.5 cm
Package 1 weight	56.0 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	9 cm
Package 2 width	25.5 cm
Package 2 length	10 cm
Package 2 weight	621 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.5 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.4429807407403639
Carbon footprint of the manufacturing phase [a1 to a3]	0.4 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.004499703703854546
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.00008443762981818181
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.0043239405776
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.008070014814399997
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.45995883746603655
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Product Brochures
Technical Data Catalogues
Installation Instruction
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
