Saturn Zen Push Button Switch LED, 1 Gang, 250V, 16AX/20A

Home ProductsSwitches and SocketsSaturn ZenPush Button Switch

Saturn Zen Push Button Switch LED, 1 Gang, 250V, 16AX/20A | Zen Black

Item Number: Z4061PBL-ZB

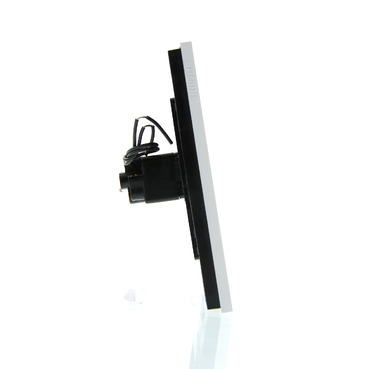

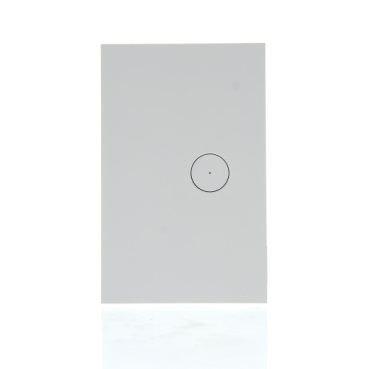

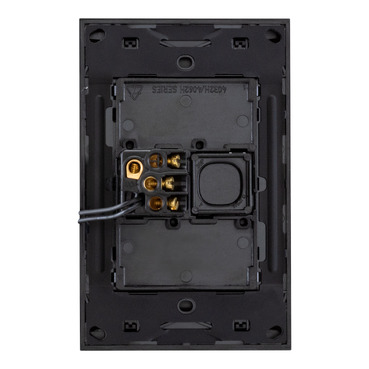

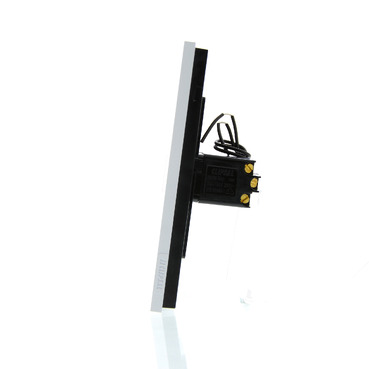

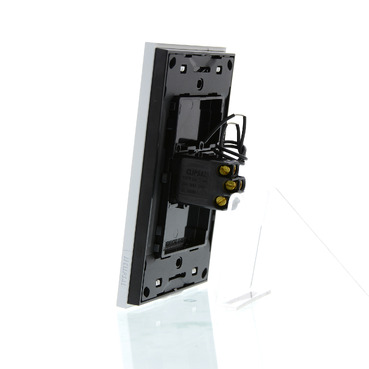

Switch assembly with LED indicator. Saturn cover plate, grid and switch mechanism are included. Suitable for 1-gang installations. Assembled with plate. Clipsal Saturn Zen. Colour: Zen White Rated current: 20A / 16AX. Operating voltage 250V a.c. 50Hz. Note: Requires installation by an appropriately licenced electrician.

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width75 mm

Height icon

Height116 mm

Embedding depth icon

Embedding depth31.6 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal

Product brand

Clipsal

Range of product

Saturn

Product or component type

switch

Physical

Number of gangs

1 gang

Width

75 mm

Height

116 mm

[in] rated current

20 A

Depth

43.6 mm

Embedding depth

31.6 mm

Switch function

1-pole 2-way

Number of rocker

1

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1607003EN

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Finished product

Main colour tint

zen white

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.3 cm

Package 1 width

12.6 cm

Package 1 length

9.4 cm

Package 1 weight

132.0 g

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

4 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.89404128

Carbon footprint of the manufacturing phase [a1 to a3]

0.9 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.02111472

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.032041152

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

3.173200000000001

Carbon footprint of the use phase [b2, b3, b4, b6]

3 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.28324032000000005

Carbon footprint of the end-of-life phase [c1 to c4]

0.3 kg CO2 eq.

Pvc free

No

Halogen-free status

Halogen free product

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

4.403637472000001

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Halogen-free status

Halogen free product

Pvc free

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications
