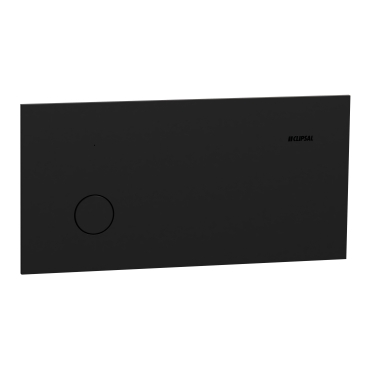

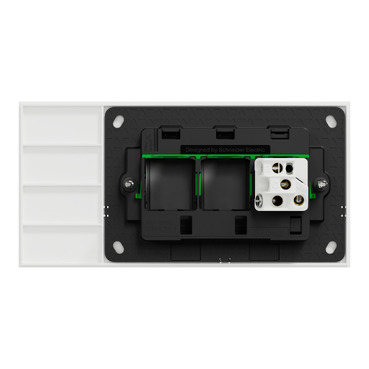

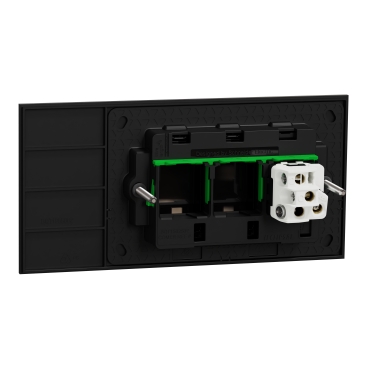

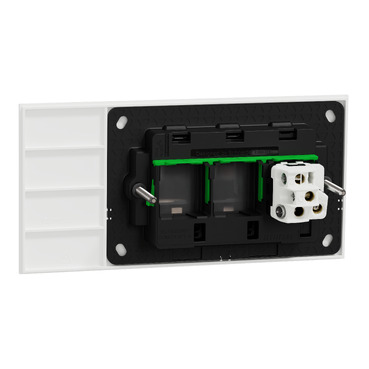

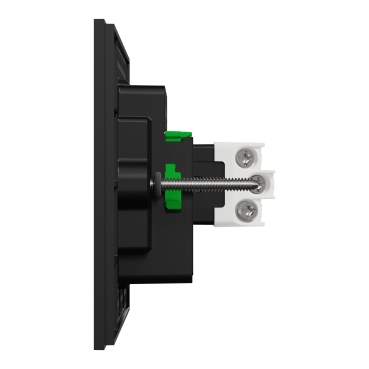

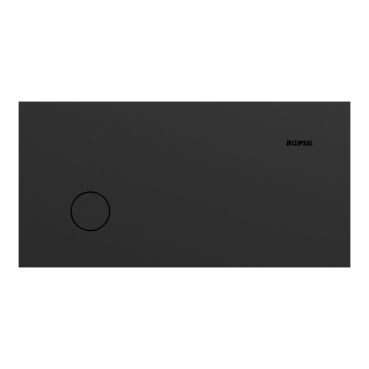

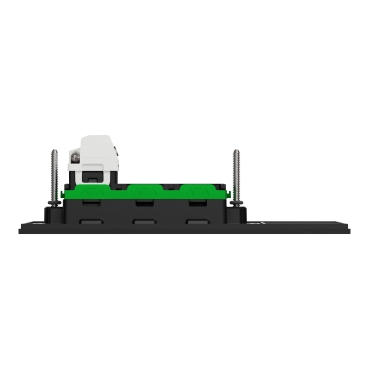

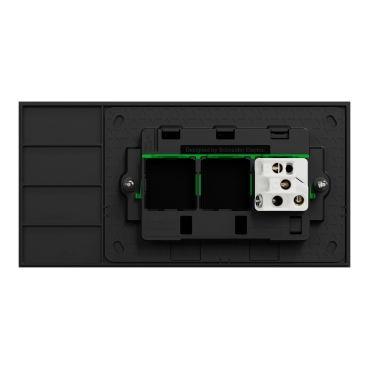

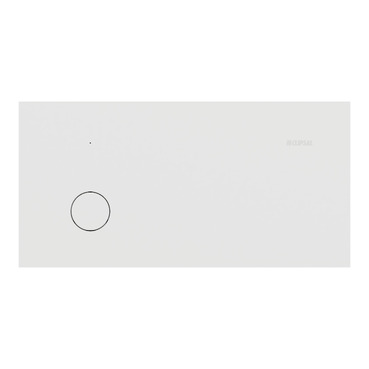

Solis Flush Switch Horizontal Mount, 1 Gang, 230V-240V, 10AX 1-Way/2-Way

Home ProductsSwitches and SocketsSolisFlush Switch

Solis Flush Switch Horizontal Mount, 1 Gang, 230V-240V, 10AX 1-Way/2-Way | Zen White

Item Number: 1041PA-ZW

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width148 mm

Height icon

Height74 mm

Embedding depth icon

Embedding depth41 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal Solis

Product brand

Clipsal

Product or component type

switch

Colour tint

matt white

Surface treatment

painted

Surface finish

matt

Physical

Device presentation

complete product

Number of gangs

1 gang

[ue] rated operational voltage

230/240 V

Rated current

20 A/16 AX

Control type

push-button

Connections - terminals

screw terminals

Device mounting

flush

Number of rocker

1

Installation direction

horizontal

Load type

LEDi lamp 0...250 W 20 A/16 AX

Clamping connection capacity

4 x 1.5...3 x 2.5 mm²

Screwdriver shape

  • Philips No 2
  • square drive no 1 (SQ1)

Wire stripping length

10 mm

Fixing mode

screw

Fixing center

84 mm

Product certifications

RCM

Height

74 mm

Width

148 mm

Depth

45.5 mm

Embedding depth

41 mm

Switch function

1-pole 1/2-way

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Standards

AS/NZS 60669

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2406024EN

Circularity profile

N/A

Material

Material

plastic

Others

Commercial status history

  • SESA471110
  • Sun Sep 01 16:17:00 EDT 2024
  • From Import Local
  • From 02 to 08

Substance regulation data deliverable

Yes

Packaging without single use plastic

No

Packaging made with recycled cardboard

Yes

Package 2 bare product quantity

30

Package 1 bare product quantity

1

Outlet standard deviation

Australian/New Zealand

Network type

AC

Network frequency

50 Hz

Main colour tint

matt white

Thickness

4.5 mm

Cut-out dimensions

93 x 50 mm

Motor m-rating as3133

M80

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

15.5 cm

Package 1 width

8 cm

Package 1 length

8 cm

Package 1 weight

64 g

Unit type of package 2

CAR

Number of units in package 2

30

Package 2 height

34 cm

Package 2 width

36 cm

Package 2 length

48 cm

Package 2 weight

2.004 kg

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

1.9092485295108075

Global warming ; total life cycle​

2 kg CO2 eq.

Minimum percentage of recycled plastic content

0
