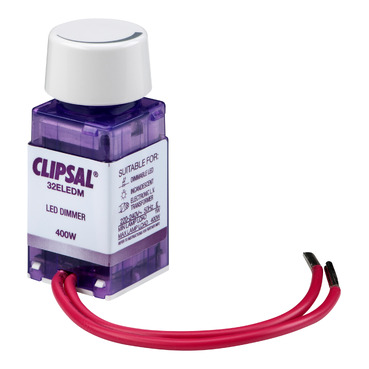

30 Series Dimmer Module LED Rotary 240V 400W | White Electric
Item Number: 32ELEDM-WE
Dimmer module with rotary knob. Requires separate switch. 30 Series module. Suitable for Clipsal C2000. Colour: White Electric For 400W dimmable LED. Operating voltage 240V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.
Datasheet
Specifications
Design
| Product brand | Clipsal |
|---|
Physical
| Reach free of svhc | Yes |
|---|---|
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2108010_V1 |
| Reach regulation | Free of Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
Documents & downloads
-
All
-
Product Brochures
-
End of Life Manual
-
Environmental Disclosure
-
Installation Instruction
-
Declaration of Conformity (Sustainability)
32ELEDM-WE EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
32ELEDM-WE EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
32ELEDM-WE EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
32ELEDM-WE EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
32ELEDM-WE REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
32ELEDM-WE REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
Frequently Asked Questions
What has been changed with the new Rotary LED dimmers for Iconic range (40 series) and standard range (30 series)?
Hide ShowBoth dimmers have now been improved and introduce the following new features
- New Digital electronic 2-wire trailing edge design for optimum LED dimming performance
- Kick start for faster LED turn on at low settings
- Mechanically adjustable minimum brightness setting
- In-built short circuit, over current and over temperature protection
- Full range smooth LED dimming from 1 – 100% (load dependant)
- Cleaner look with no markings on the control knobs
Please note that the load ratings have changed for the new version. The new 32ELEDM2-WE and 42ELEDM2-VW are rated to 150W to enable enhanced LED optimised control and dimming performance.
