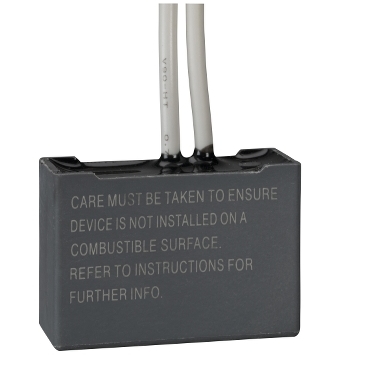

Standard Series LV Power Factor Correction Module 500W

Home ProductsSwitches and SocketsStandard SeriesLV Power Factor Correction Module

Standard Series LV Power Factor Correction Module 500W

Item Number: S31LCDA

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width30 mm

Height icon

Height20 mm

Depth icon

Depth10 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Standard Series

Product or component type

power factor controller

Device application

load control

Physical

Range compatibility

Clipsal dimmer

Rated voltage

240 V AC 50 Hz

Ambient air temperature for operation

0...65 °C

Relative humidity

5...95 %

Width

30 mm

Height

20 mm

Depth

10 mm

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1308010EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

1

Legacy weee scope

In

Rated operational power in w

500 W at 200...240 V

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.5 cm

Package 1 width

3.5 cm

Package 1 length

10 cm

Package 1 weight

20 g

Unit type of package 2

BB1

Number of units in package 2

5

Unit type of package 3

CAR

Number of units in package 3

100

Sustainable packaging

No

Take-back

N/A

Packaging made with recycled cardboard

Yes

End of life manual availability

ENVEOLI1308010EN

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications
