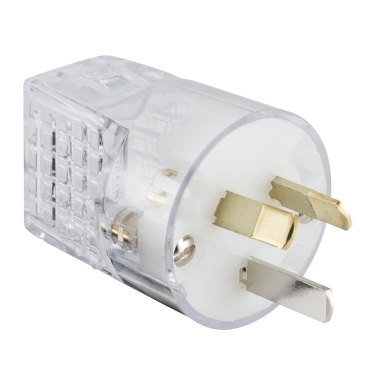

Standard Series, Quick Connect Plug, Straight, 3 Pin, 10A, 250V

Standard Series, Quick Connect Plug, Straight, 3 Pin, 10A, 250V Transparent

Item Number: 1439SHD-TR

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Standard Series

Product brand

Clipsal

Colour

body: transparent

Sustainable offer status

Green Premium product

Physical

[in] rated current

10 A

[ue] rated operational voltage

230 V 50/60 Hz conforming to EN 60309-2

Connections - terminals

screw terminal

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1605009

Circularity profile

N/A

Material

Material

plastic

Others

Package 1 bare product quantity

1

Voltage colour

blue

Plug, socket, control station shape

straight

Duration

6 h

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.2 cm

Package 1 width

4.1 cm

Package 1 length

4.1 cm

Package 1 weight

44 g
Show all specifications
