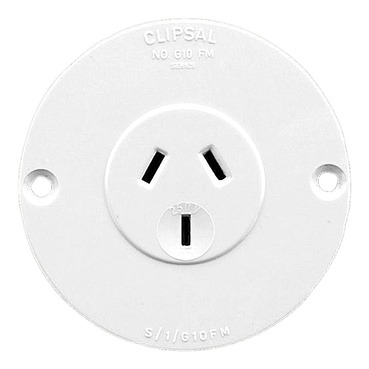

Standard Series Socket Outlet Mechanism Automatic, Single, 250V, 10A, 2 Pole, Safety Shutter | White Electric
Item Number: G10FMDS-WE
Datasheet
Close
Specifications
Design
Range of product
Series G10F
Product or component type
socket-outlet
Product brand
Clipsal
Physical
Quantity per set
set of 1
Marking
without marking
Protection type
fingersafe
Local signalling
without light indicator
Device mounting
flush
Fixing mode
by screws
[in] rated current
10 A
[ue] rated operational voltage
250 V AC
Depth
26 mm
Fixing center
64 mm
Number of poles
2
Standards
- AS/NZS 3112
- AS 3100
- AS 3109
- AS/NZS 3122:approval number S/1
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP120506EN
Circularity profile
N/A
Others
Package 1 bare product quantity
1
Cover type
complete housing
Diameter
74 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.4 cm
Package 1 width
7.4 cm
Package 1 length
7.4 cm
Package 1 weight
55.3 g
