Standard Series Socket Outlet Single, 250VAC, 10A, 3 PIN, Surface Mount

Home ProductsSwitches and SocketsStandard SeriesSocket Outlet

Standard Series Socket Outlet Single, 250VAC, 10A, 3 PIN, Surface Mount | White Electric

Item Number: 412-WE

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product or component type

socket-outlet

Product brand

Clipsal

Surface finish

glossy

Physical

Quantity per set

set of 1

Marking

without marking

Local signalling

without light indicator

Device mounting

surface

Fixing mode

by screws

[in] rated current

10 A

[ue] rated operational voltage

250 V AC

Depth

28 mm

Fixing center

35...38 mm

Number of poles

1

Standards

  • AS 3109
  • AS 3100
  • AS/NZS 3112

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2508038_V1-EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant By Exemption

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

plastic

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Finished product

Warranty duration(in months) bmecat

18

Cover type

complete housing

Network frequency

50 Hz

Diameter

47 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3 cm

Package 1 width

9 cm

Package 1 length

12 cm

Package 1 weight

40 g

Total lifecycle carbon footprint

0.3 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.20709010648253906

Carbon footprint of the manufacturing phase [a1 to a3]

0.2 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0057486284914676205

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.012607554545667124

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0.0539501499143412

Carbon footprint of the use phase [b2, b3, b4, b6]

0.1 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.027450392913467243

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Pvc free

No

Halogen-free status

Halogen free product

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.3068468323474822

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

China rohs label

5

Halogen-free status

Halogen free product

Pvc free

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • Environmental Disclosure

  • Installation Instruction

  • Specification Guide

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Revit Pack Surface Mounted
ZIP

Revit Pack Surface Mounted

VERSION

1.0

DATE

15 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB
414 Twin Surface Sockets, 13522
ZIP

414 Twin Surface Sockets, 13522

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 247.6 KB
Unlock the finest Metal Plate Range in the world - 9317
ZIP

Unlock the finest Metal Plate Range in the world - 9317

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 2.9 MB
Plugs, Sockets and Adaptors Technical Data
ZIP

Plugs, Sockets and Adaptors Technical Data

VERSION

1.0

DATE

21 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 2.6 MB
SURFACE SOCKET OUTLET
ZIP

SURFACE SOCKET OUTLET

VERSION

1.0

DATE

20 Nov 2025

REVISION

1.0

DOWNLOAD (ZIP) 363.6 KB
Installation Instructions - F1815/01 - How to remove redesigned nail plate from surface sockets, 21087
ZIP

Installation Instructions - F1815/01 - How to remove redesigned nail plate from surface sockets, 21087

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 404.7 KB
Technical Specifications - Socket Outlets and Inlets - General
ZIP

Technical Specifications - Socket Outlets and Inlets - General

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 158.2 KB
Technical Specifications - Switches - Strato S8000 Series
ZIP

Technical Specifications - Switches - Strato S8000 Series

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 180.8 KB

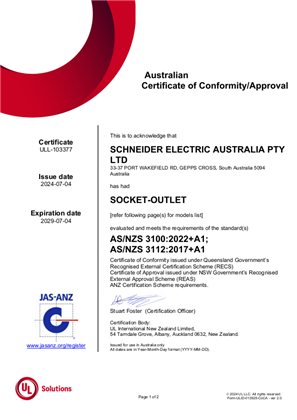

Clipsal, 412 and 402 socket outlets, Certificate, RCM, ULNZ LTD
