Standard Series Switch Plate Horizontal Mounting, 1 Gang

Standard Series Switch Plate Horizontal Mounting, 1 Gang | WE

Item Number: 31VHWP-WE

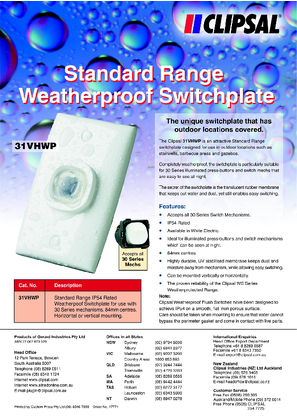

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Standard Series

Product brand

Clipsal

Product destination

switch

Sustainable offer status

Green Premium product

Physical

Fixing mode

by screws

Marking

without marking

Mounting position

horizontal and vertical

Fixing center

84 mm

Length

115 mm

Width

73 mm

Depth

11 mm

Number of gangs

1 gang

Ip degree of protection

IP54

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Material

Material

plastic

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.1 cm

Package 1 width

7.3 cm

Package 1 length

11.5 cm

Package 1 weight

60 g
