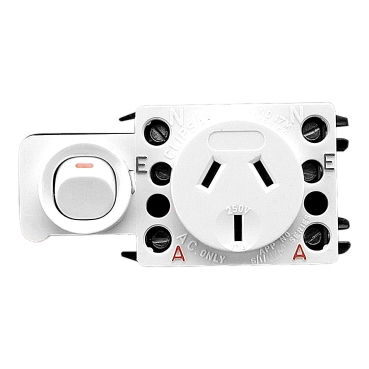

Standard Series Switched Socket 1 Gang, Side Connecting, Skirting Mount, 250V, 10A | Grey
Item Number: 17M-GY
Datasheet
Close
Specifications
Design
Range of product
Standard Series
Product or component type
switched socket
Product brand
Clipsal
Surface finish
glossy
Physical
Control type
ON/OFF button
Number of gangs
1 gang
Pin number
3
Number of power socket outlets
1
Actuator
rocker|switch
Fixing mode
by screws
Local signalling
without light indicator
Mounting position
horizontal
[ue] rated operational voltage
250 V AC
[in] rated current
10 A
Depth
29 mm
Length
90 mm
Width
43 mm
Standards
AS/NZS 3100|AS/NZS 3112|AS/NZS 3133:approval number S/1
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP120506EN
Circularity profile
N/A
Material
Material
plastic
Others
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2.9 cm
Package 1 width
4.3 cm
Package 1 length
9 cm
Package 1 weight
0.104 kg
