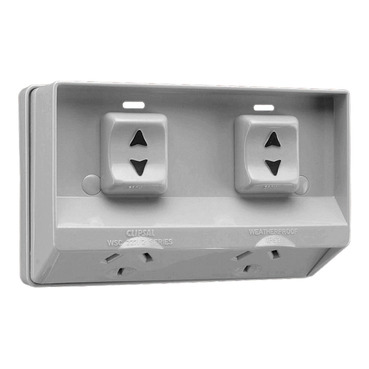

Weathershield, Socket Outlet, Twin Switch, 250V, 15A, Weather Proof, Flush Mount

Weathershield, Socket Outlet, Twin Switch, 250V, 15A, Weather Proof, Flush Mount Resistant Grey

Item Number: WSCF227/2/15-RG

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Weathershield

Product brand

Clipsal

Physical

Control type

  • sliding type
  • ON/OFF button

Number of gangs

2 gangs

Pin number

3

Number of power socket outlets

2

Fixing mode

by screws

Local signalling

without light indicator

Mounting position

horizontal

[ue] rated operational voltage

250 V AC

[in] rated current

15 A

Depth

55 mm

Length

115 mm

Width

82 mm

Fixing center

84 mm

Ip degree of protection

IP53

Standards

AS/NZS 3112:approval number S/1

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2106012

Circularity profile

ENVEOLI2106012

Material

Material

plastic

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.0 cm

Package 1 width

9.0 cm

Package 1 length

12.5 cm

Package 1 weight

274.0 g

Packaging without single use plastic

No

Packaging made with recycled cardboard

Yes

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
Show all specifications
