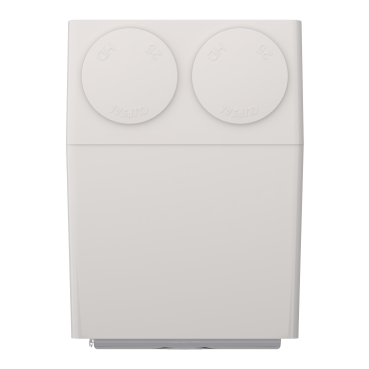

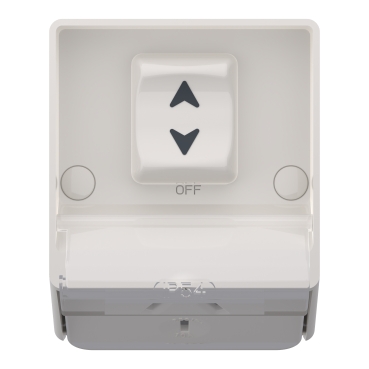

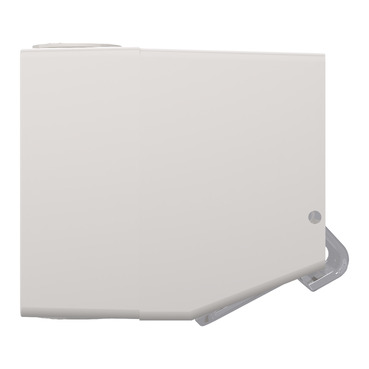

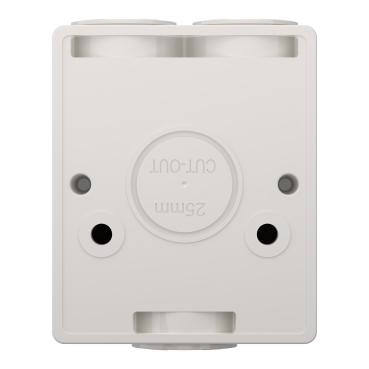

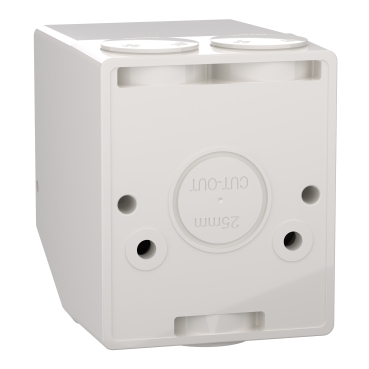

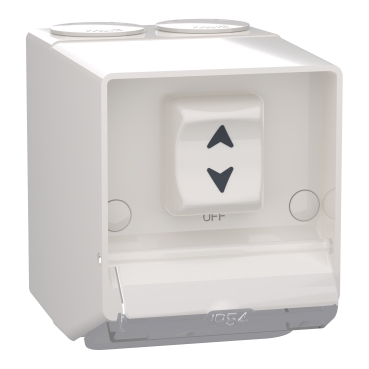

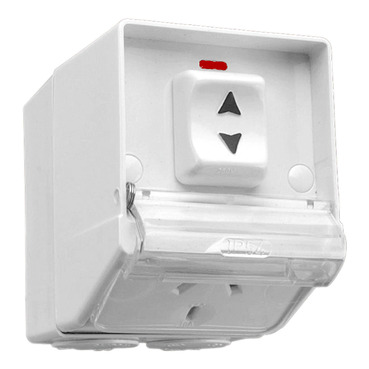

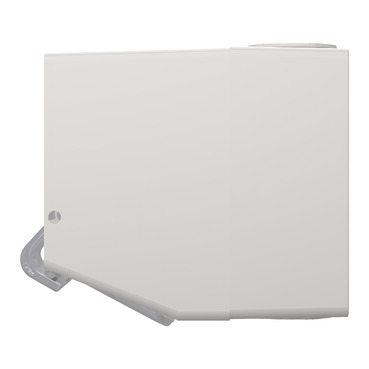

Weathershield Socket Single, Post Mount, 10A, 250VAC, IP54

Weathershield Socket Single, Post Mount, 10A, 250VAC, IP54 | Grey

Item Number: WSC228-GY

The ideal compact socket outlet perfect for post mounting with a narrow enclosure, making it ideal for the backyard. This Socket is rated at 10A, 250VAC.

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Weathershield

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

Control type

ON/OFF button|sliding type

Number of gangs

1 gang

Pin number

3

Number of power socket outlets

1

Fixing mode

by screws

Local signalling

without light indicator

Mounting position

horizontal

[ue] rated operational voltage

250 V AC

[in] rated current

10 A

Depth

87 mm

Length

75 mm

Width

78 mm

Fixing center

84 mm

Ip degree of protection

IP54

Standards

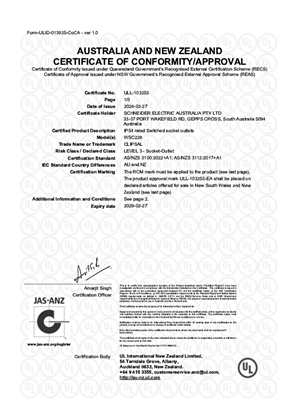

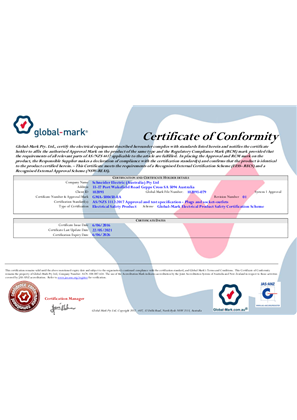

AS/NZS 3112:approval number S/1

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP2106012

Circularity profile

ENVEOLI2106012

Material

Material

plastic

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.7 cm

Package 1 width

8.5 cm

Package 1 length

10.0 cm

Package 1 weight

233.0 g
