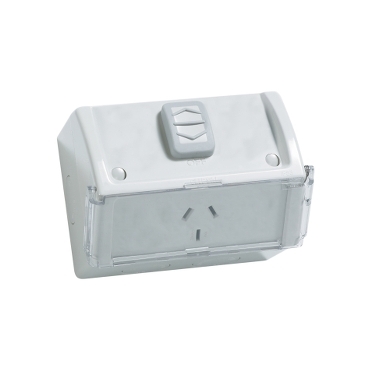

Weathershield Switched Socket IP54, Single, 250V, 10A | Chemical Resistant Grey
Item Number: WSCF227F1-RG
Datasheet
Close
Specifications
Design
| Range of product | Weathershield |
|---|---|
| Product brand | Clipsal |
Physical
| Control type |
|
|---|---|
| Number of gangs | 1 gang |
| Pin number | 3 |
| Number of power socket outlets | 1 |
| Fixing mode | by screws |
| Local signalling | without light indicator |
| Mounting position | horizontal |
| [ue] rated operational voltage | 250 V AC |
| [in] rated current | 10 A |
| Depth | 70 mm |
| Length | 115 mm |
| Width | 85 mm |
| Ip degree of protection | IP54 |
| Standards | AS/NZS 3112:approval number S/1 |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1302001EN |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
Material
| Material | plastic |
|---|
