WP Series Double Switched Socket 10A Less Enclosure

Home ProductsSwitches and SocketsWP SeriesDouble Switched Socket

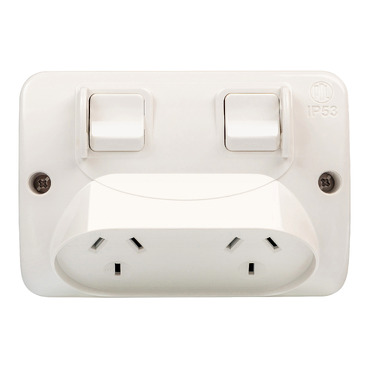

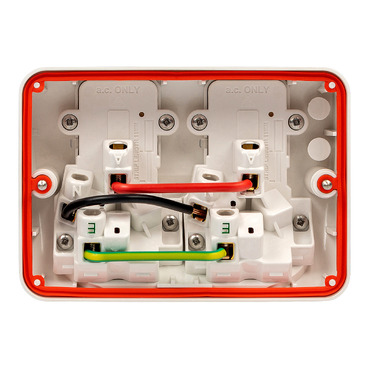

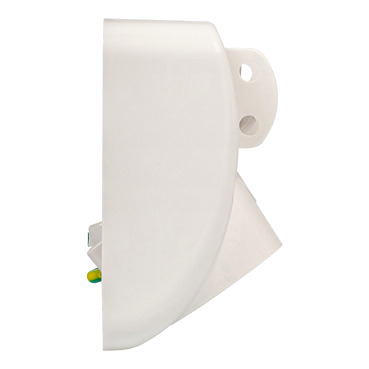

WP Series Double Switched Socket 10A Less Enclosure | Grey

Item Number: PDLWSO3102LEGY

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width120 mm

Height icon

Height84 mm

Depth icon

Depth85 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

WP Series

Product or component type

switched socket

Colour tint

light grey

Surface finish

gloss

Physical

Control type

rocker

Installation direction

horizontal

Width

120 mm

Height

84 mm

Depth

85 mm

Rated current

10 A

[ue] rated operational voltage

230/240 V

Number of gangs

2 gangs

Mounting mode

surface mounted

Ip degree of protection

IP53

Type of packing

carton

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2106012

Eu rohs directive

Compliant

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Material

PC (polycarbonate)

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Finished product

Network frequency

50 Hz

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5 cm

Package 1 width

8.5 cm

Package 1 length

12 cm

Package 1 weight

0.162 kg

Unit type of package 2

BB1

Number of units in package 2

6

Package 2 height

8.6 cm

Package 2 width

12.8 cm

Package 2 length

17.5 cm

Package 2 weight

1.5 kg

Unit type of package 3

CAR

Number of units in package 3

48

Package 3 height

8.6 cm

Package 3 width

12.8 cm

Package 3 length

17.5 cm

Package 3 weight

12 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

5 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.0013753036619844

Carbon footprint of the manufacturing phase [a1 to a3]

0 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.0000211314331902

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

5.389618013703003

Carbon footprint of the use phase [b2, b3, b4, b6]

5 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.0003520597106867

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

5.391366508508864

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

End of life manual availability

ENVEOLI2106012

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • End of Life Manual

  • Environmental Disclosure

  • Declaration of Conformity

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Weather Proof Series and S Series brochure
ZIP

Weather Proof Series and S Series brochure

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 2.6 MB
Socket Sw Single with Timer 10A 250V XW
ZIP

Socket Sw Single with Timer 10A 250V XW

VERSION

1.0

DATE

15 Oct 2025

REVISION

1.0

DOWNLOAD (ZIP) 247.6 KB
Socket Sw Single with Timer 10A 250V XW
ZIP

Socket Sw Single with Timer 10A 250V XW

VERSION

1.0

DATE

15 Oct 2025

REVISION

1.0

DOWNLOAD (ZIP) 300.2 KB

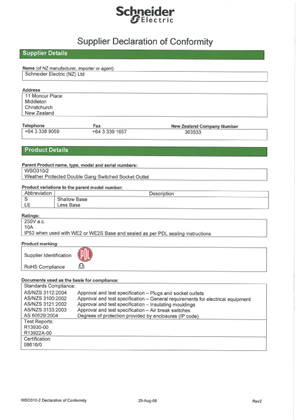

WP Series, WSO310-2, Declaration of Conformity
