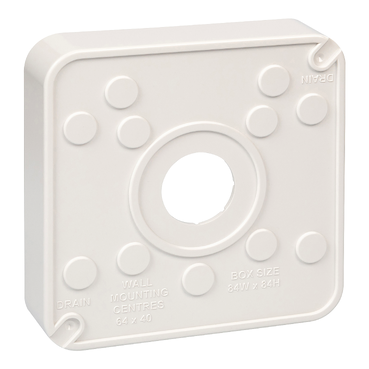

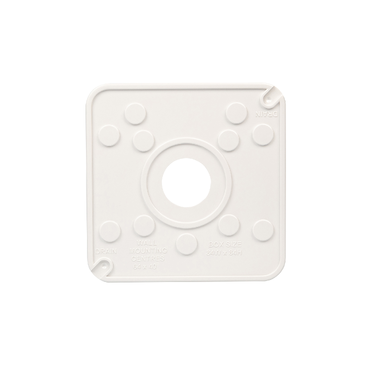

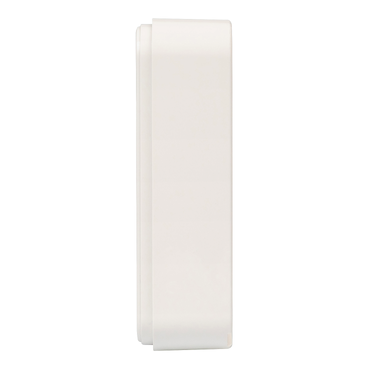

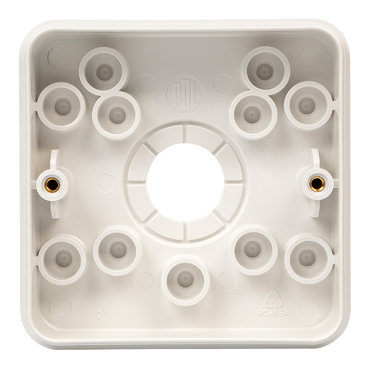

WP Series Enclosure Shallow Surface Mount 1-Gang 20mm Deep

WP Series Enclosure Shallow Surface Mount 1-Gang 20mm Deep | Grey

Item Number: PDLWE1SGY

Datasheet

Product Dimensions

Width icon

Width84 mm

Height icon

Height84 mm

Depth icon

Depth20 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

WP Series

Product or component type

enclosure

Colour tint

light grey

Surface finish

gloss

Physical

Width

84 mm

Height

84 mm

Depth

20 mm

Number of gangs

1 gang

Mounting mode

surface mounted

Fixing center

64 x 40 mm

Quantity per set

set of 10

Type of packing

carton

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP2106012

Circularity profile

ENVEOLI2106012

Material

Material

PVC (polyvinyl chloride) UV stabilised

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.5 cm

Package 1 width

8.5 cm

Package 1 length

8.5 cm

Package 1 weight

0.066 kg

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

8.6 cm

Package 2 width

12.8 cm

Package 2 length

17.5 cm

Package 2 weight

716.3 g

Unit type of package 3

CAR

Number of units in package 3

120

Package 3 height

19 cm

Package 3 width

36.5 cm

Package 3 length

39.7 cm

Package 3 weight

8250 g

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

5.390330363438724
