Specifications
Design
| Range of product | WP Series |
|---|---|

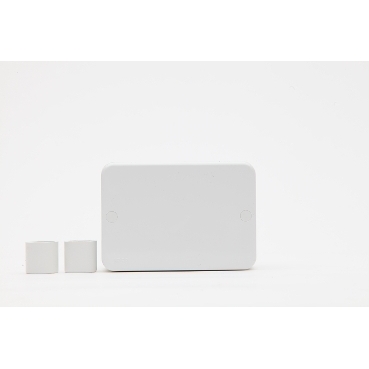

| Product or component type | junction box |
| Colour tint | light grey |
| Surface finish | gloss |
Physical
| Width | 120 mm |
|---|---|
| Height | 83 mm |
| Depth | 65 mm |
| Number of gangs | 2 gangs |
| Mounting mode | surface mounted |
| Fixing center | 47 x 90 mm |
| Ip degree of protection | IP56 |
| Quantity per set | set of 6 |
| Type of packing | carton |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2106012_V1 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PVC (polyvinyl chloride) UV stabilised |
|---|
