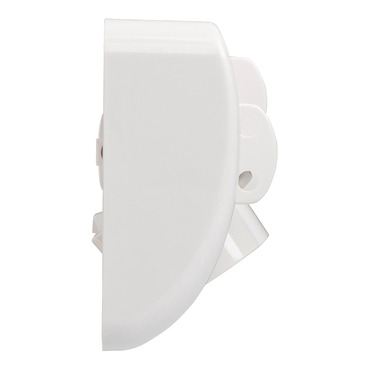

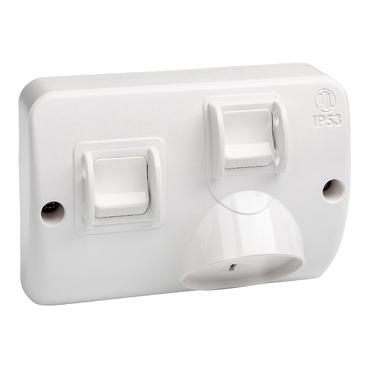

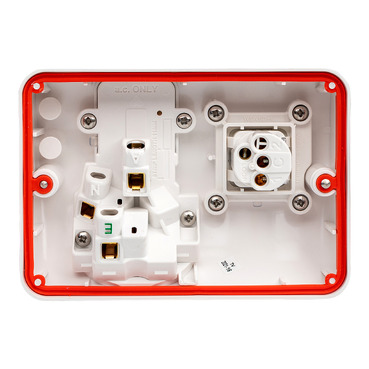

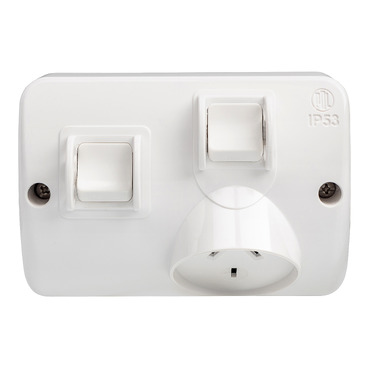

WP Series, Socket Outlet + Switch

Home ProductsSwitches and SocketsWP SeriesSocket Outlet + Switch

WP Series, Socket Outlet + Switch Grey

Item Number: PDLWSO310XLEGY

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width120 mm

Height icon

Height84 mm

Depth icon

Depth85 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

WP Series

Product or component type

switched socket

Colour tint

light grey

Surface finish

gloss

Physical

Control type

rocker

Installation direction

horizontal

Width

120 mm

Height

84 mm

Depth

85 mm

Rated current

10 A

[ue] rated operational voltage

230/240 V

Number of gangs

1 gang

Mounting mode

surface mounted

Ip degree of protection

IP55

Type of packing

carton

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1302001EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope

Eu rohs directive

Compliant

China rohs regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Material

PC (polycarbonate)

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

6

Package 3 bare product quantity

48

Package 4 bare product quantity

23760

Average percentage of recycled plastic content

0 %

Outside of Europe

Warranty duration(in months) bmecat

18

Weee label

N/A

Weee applicability

Component

Weee exclusion rationale

Component not in scope – non independent function

Network frequency

50 Hz

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.5 cm

Package 1 width

8.5 cm

Package 1 length

12 cm

Package 1 weight

147 g

Unit type of package 2

BB1

Number of units in package 2

6

Package 2 height

8.6 cm

Package 2 width

12.8 cm

Package 2 length

17.5 cm

Package 2 weight

1.5 kg

Unit type of package 3

CAR

Number of units in package 3

48

Package 3 height

8.6 cm

Package 3 width

12.8 cm

Package 3 length

17.5 cm

Package 3 weight

12 kg

Total lifecycle carbon footprint

5 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.0012479607303192

Carbon footprint of the manufacturing phase [a1 to a3]

0 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.000019174819006

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

5.389618013703003

Carbon footprint of the use phase [b2, b3, b4, b6]

5 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.0003194615893269

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

5.391204610841655

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

China rohs label

1

End of life manual availability

ENVEOLI2106012

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

Filter items

  • All

  • Product Brochures

  • Environmental Disclosure

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Weather Proof Series and S Series brochure
ZIP

Weather Proof Series and S Series brochure

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 2.6 MB
Weather Protected Switch Socket - Product Environmental Profile
ZIP

Weather Protected Switch Socket - Product Environmental Profile

VERSION

1.0

DATE

02 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 317.1 KB

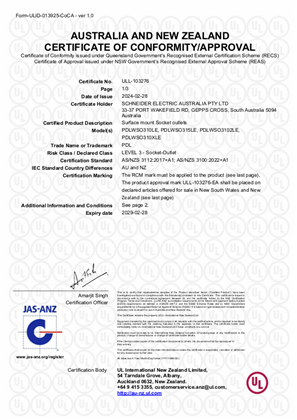

PDL, Weather Protected Switch Socket Outlet, Certificate, RCM, ULNZ LTD
ZIP

PDL, Weather Protected Switch Socket Outlet, Certificate, RCM, ULNZ LTD

VERSION

1.1

DATE

06 Jan 2026

REVISION

1.1

DOWNLOAD (ZIP) 281.5 KB

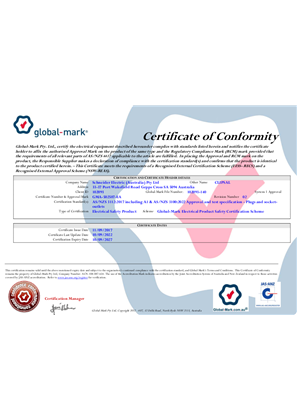

PDLWSO310 and WSO315 Switched Socket, Certificate, RCM, Global Mark Pty LTD
ZIP

PDLWSO310 and WSO315 Switched Socket, Certificate, RCM, Global Mark Pty LTD

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 146.3 KB

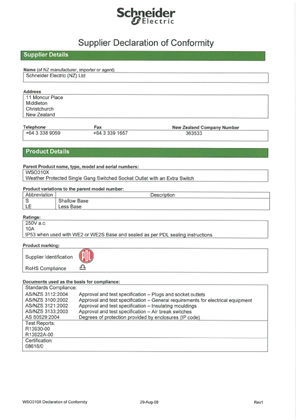

WP Series, WSO310X, Declaration of Conformity
ZIP

WP Series, WSO310X, Declaration of Conformity

VERSION

1.0

DATE

07 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 614.5 KB
PDLWSO310XLEGY EU RoHS Declaration
ZIP

PDLWSO310XLEGY EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
PDLWSO310XLEGY EU RoHS Declaration
ZIP

PDLWSO310XLEGY EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
PDLWSO310XLEGY EU RoHS Declaration
ZIP

PDLWSO310XLEGY EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
PDLWSO310XLEGY EU RoHS Declaration
ZIP

PDLWSO310XLEGY EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
PDLWSO310XLEGY REACh Declaration
ZIP

PDLWSO310XLEGY REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
PDLWSO310XLEGY REACh Declaration
ZIP

PDLWSO310XLEGY REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
PDLWSO310XLEGY REACh Declaration
ZIP

PDLWSO310XLEGY REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
PDLWSO310XLEGY REACh Declaration
ZIP

PDLWSO310XLEGY REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
