Datasheet
Close
Specifications
Design
| Range of product | WP Series |
|---|---|
| Product or component type | twilight sensor |
| Colour tint | light grey |
Physical
| Length | 84 mm |
|---|---|
| Width | 84 mm |
| Depth | 38 mm |
| [ue] rated operational voltage | 230/240 V |
| Fixing center | 64 x 40 mm |
| Ambient air temperature for operation | -10...45 °C |
| Ip degree of protection | IP56 |
| Quantity per set | set of 6 |
| Type of packing | carton |
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2106012_V1 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | X |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PVC (polyvinyl chloride) UV stabilised |
|---|
Documents & downloads
Filter items
-
All
-

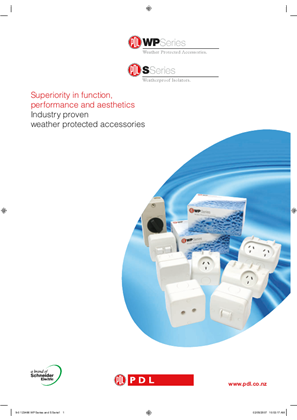

Product Brochures
-
Environmental Disclosure
-
End of Life Manual
-
Certificates (MSDS)
-
Declaration of Conformity (Sustainability)
ZIP

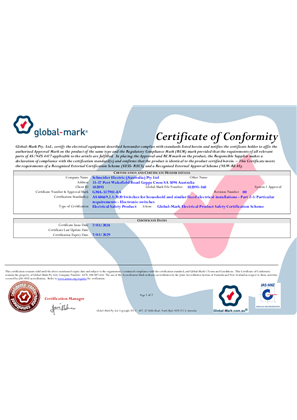

Clipsal and PDL, 56SSR/3 weather protected sunset switches, certificate, Global Mark Pty Ltd
VERSION
1.0
DATE
15 Mar 2024
REVISION
1.0
DOWNLOAD (ZIP) 297.7 KB
ZIP

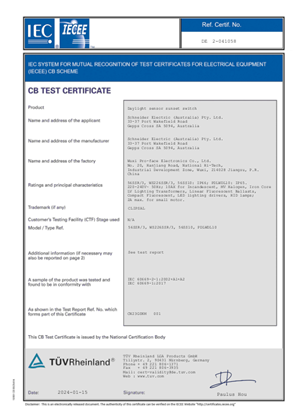

Clipsal and PDL, 56SSR/3 sunset switches, CB test certificate, TUV Pty Ltd
VERSION
1.0
DATE
18 Jan 2024
REVISION
1.0
DOWNLOAD (ZIP) 450.4 KB
