Simplicity lies in the detail
Incorporating a modern interpretation of timeless elegance, Clipsal’s latest collection of switches and power points epitomises a commitment to setting a new standard of excellence in the field.
This innovative range seamlessly integrates beautiful minimalism with smart home technology, establishing itself as the luxurious forefront of electrical design.
Introducing from PDL, the Clipsal Solis™ Collection
Winner - 2024 Good Design Award
Introducing the Clipsal Solis™ Collection, a groundbreaking range of electrical solutions for New Zealand homes, seamlessly blending world-class design and premium materials with cutting-edge technology to enhance spaces and elevate lifestyles. Step into a world where form meets function with meticulously crafted details that enhance design aesthetics and simplify functionality for homeowners.
Clipsal Solis™ Collection: the design story
Discover more about the design story behind Clipsal Solis™ Collection, brought to the NZ market by PDL. Its refined form, functionality, and premium finishes are backed by Schneider Electric’s world-leading engineering, making Solis the new quality choice for design professionals.
Tim Turrini-Rochford, Schneider Electric’s VP Design Asia Pacific, says work on Solis was careful and considered as it had to meet a market need for a beautiful, functional product that could sit easily in high-end projects for specifiers, while satisfying the technical requirements of electricians and delighting residential homeowners.
Clipsal Solis and Solis T Series
The Clipsal Solis Collection encourages you to express your creative vision with two new premium ranges tailored for high-end residential projects. Each range delivers a distinctive touch and feel experience, create customisable lighting solutions and innovative home automation systems.
With a focus on ease of installation and trusted reliability, these ranges uphold the renowned quality associated with Clipsal.

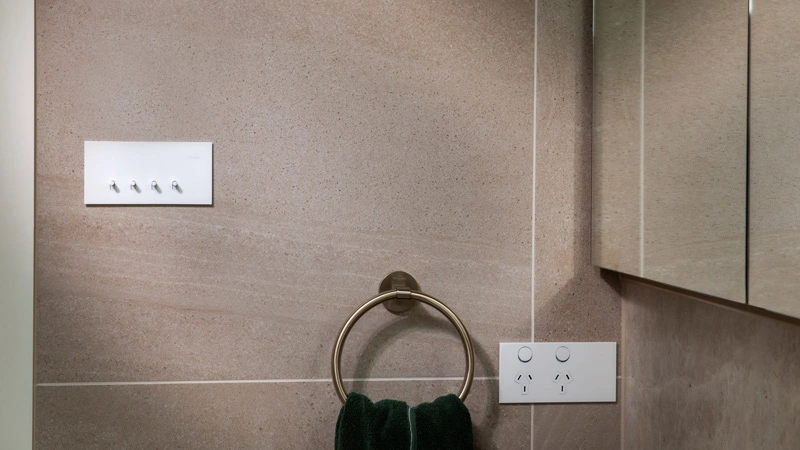

Solis

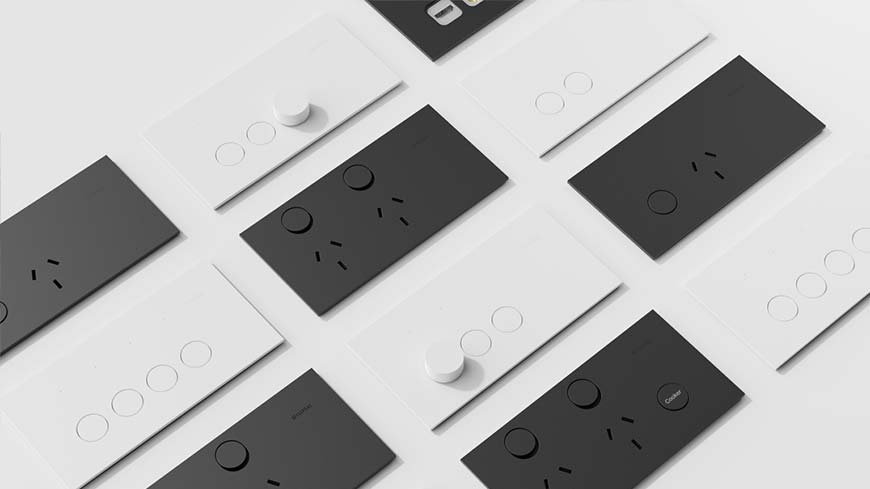

The elegant design of Clipsal Solis is reimagined in a minimalist manner, showcasing two sleek matte finishes crafted from recycled materials. The flush push-button and switch design seamlessly integrate into an ultra-slim cover, offering a refined and stylish addition to any home.
Solis T Series

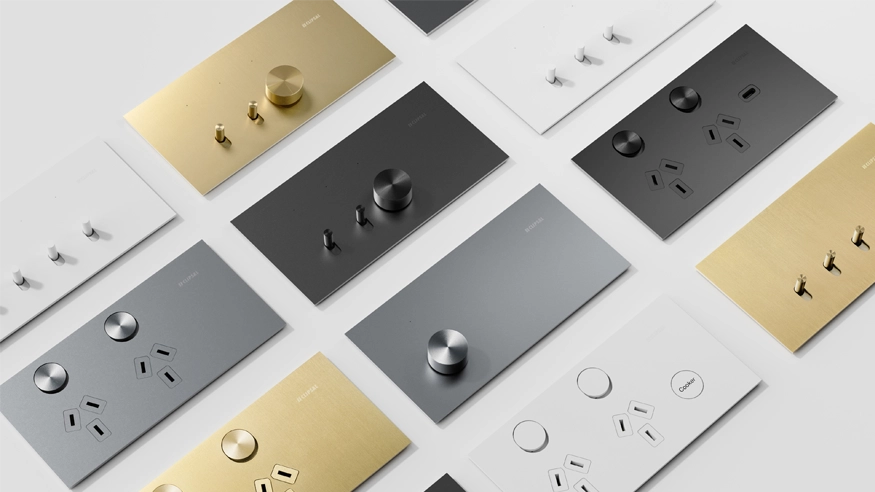

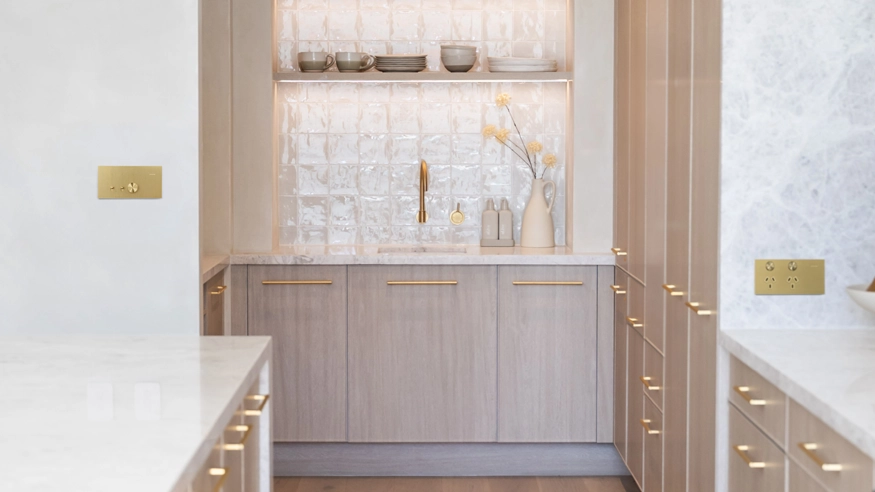

The Clipsal Solis T Series presents a unique design crafted from sustainable and authentic materials, presenting harmonious elements available in four premium finishes: Brushed Brass, Platinum Aluminium, Ebony Aluminium, and White Ceramic, offering a standout choice for architectural and interior design projects.
Solis brochure
Discover the refined elegance of the Clipsal Solis™ Collection. Download our brochure for more information on the range.

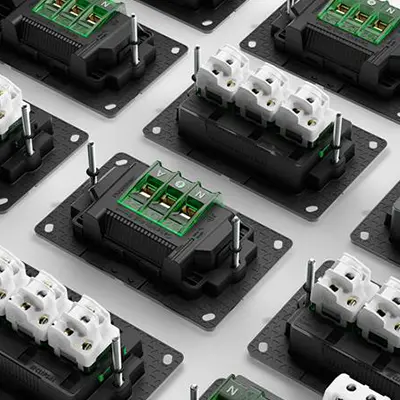

Technical catalogue
Experience a new benchmark in the electrical category. Download our technical catalogue for more information.

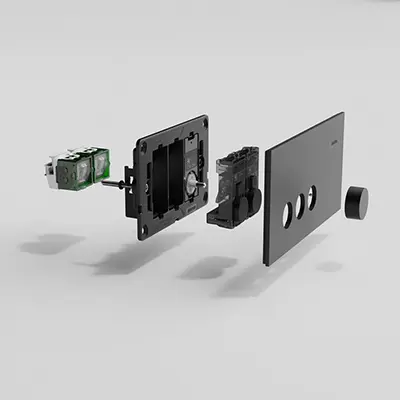

Specification documents
Need all the specification details? Download the documents below for all the information.
Solis Revit files
Explore the Revit files related to the Clipsal Solis Collection. Download the documents below for all the information.
Are you a homeowner?
Get the latest resources and brochure for the Clipsal Solis™ Collection here.
Are you an electrician?
Get the latest resources and installation support for the Clipsal Solis™ Collection here.
What colours are the Solis & Solis T Series Products available in?
Hide ShowSolis T Series is available in Brushed Brass (BB), Ebony Aluminium (EA), Platinum (PT), and White Ceramic (WC).

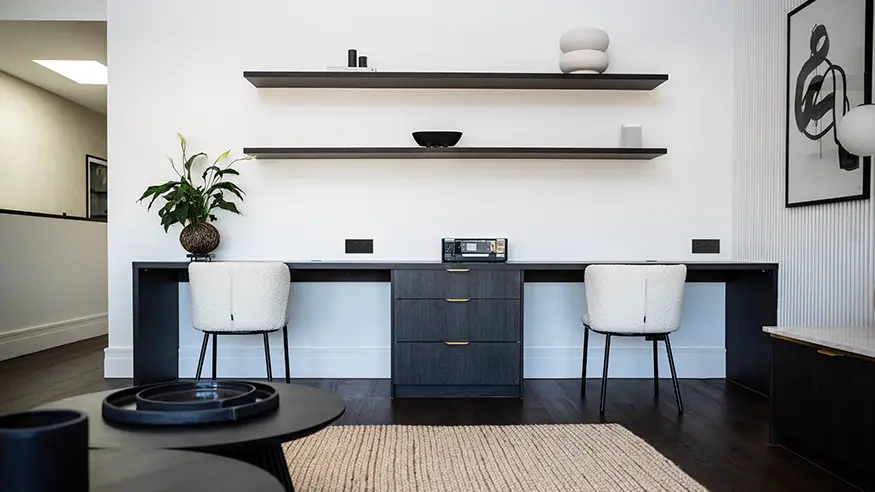

Solis is available in Matte White (ZW) & Matte Black (ZB).
Do you require a Wiser Hub for the Solis and Solis T Connected socket?
Hide ShowYes - The Connected Socket comes in Zigbee Mode by default and will require the Wiser Hub for pairing and connection.
Does the USB Charger Outlet in Solis and Solis T come with different types of USB connections?
Hide ShowNo, the Solis and Solis T series socket outlet with USB only comes with the single USB Type C Fast Charger.
What mounting bracket is recommended for the 1044TA, 1044TUA, 1044PA, 1044PUA, 1025XUA & 1025USBC products?
Hide ShowIn Australia, the bracket recommended for timber framed homes is 155U4, which has 120mm mounting centres.
In New Zealand, the flush box recommended for timber frame homes is PDL144M4, which has 120mm mounting centres.
What plaster bracket is recommended for the 1044TA, 1044TUA, 1044PA, 1044PUA, 1025XUA & 1025USBC products?
Hide ShowIn Australia, the bracket recommended for plaster wall homes is 155PRMU4, which has 120mm mounting centres.
What wall box is recommended for the 1044TA, 1044TUA, 1044PA, 1044PUA, 1025XUA & 1025USBC products?
Hide ShowIn Australia and New Zealand, the wall box recommended for solid brick homes is 157PRM4, which has 120mm mounting centres.
What C-Clip is recommended for the 1044TA, 1044TUA, 1044PA, 1044PUA, 1025XUA & 1025USBC products?
Hide ShowIn Australia and New Zealand, the C-Clip recommended for walls that are 10mm thick is 154C4, which has 120mm mounting centres.
How do you remove the cover from the Solis and Solis T range once it’s clipped on?
Hide ShowThe cover can be carefully removed by levering from the wall to release the metal clips.
How should the Solis & Solis T Series be cleaned?
Hide ShowSwitches and Sockets should only be cleaned using a detergent solution mixed with warm water (Damp cloth).
Detergent-impregnated wipes may also be used as a quick and convenient cleaning option.
Homeowners should NOT use household cleaning sprays as chemical sprays can attack the plastic materials and cause them to fail over time.
Do not use any abrasive materials to clean or wipe down the products as they can permanently damage the appearance of the surfaces.
Will the 40 Series C-Bus master and slave modules fit into Solis and Solis T Series?
Hide ShowYes – C-Bus Push Buttons are the same interface as Wiser Push Buttons and will operate using the Wiser Adaptor. Unfortunately, the LED will not operate and therefore not recommended.
If you want to use the C-Bus mechs it is recommended to switch off the LED as it will not function using the adaptor. Follow instructions to turn the LED off.
Can the Solis and Solis T range accommodate any larger amperage Cooker Switches for Induction Hobs etc.?
Hide ShowNo – The only switches available to fit Solis and Solis T series are Iconic Mechanism variants/ 40 series. The largest switching amperage in this range is the 40M32 at 32A. If larger switching capability is required, then you will need to use a Contactor or a Cooker Switch from another range.
Can you use the standard universal Push Button Dimmer in the Solis and Solis T range?
Hide ShowYes – The standard Iconic Push Button Dimmer can be used with the Solis and Solis T range, but it is recommended to switch off the LED as it will not function using the Adaptor. Follow instructions to turn the LED off. It cannot be used with the Rotary adaptor.
Does the Solis T range of Metallic Plates require Earthing?
Hide ShowNo – The metallic plates are insulated from any wiring or potential wiring from touching the metal plate.
Are there any Pictograms or Engraved Buttons available in the Solis or Solis T range?
Hide ShowNo, we only offer the “Cooker” push button with marking.
Are the Solis and Solis T covers (faceplates) sold separately?
Hide ShowNo, there are no current plans to sell them separately.
Can you use the 3-position switches with Solis or Solis T range?
Hide ShowNo – Unfortunately the 3-position switches, 49M and P49MBPR, do not fit into the Solis or Solis T range.
If blind control is required, you can use 2 x 40MBPRL mechanisms using one for UP and one for DOWN.
I have ceiling fans in my home, can you use the 4-position rotary mechanisms with Solis or Solis T?
Hide ShowNo – Unfortunately the 4-position rotary mechanisms, 40RSM3 and 40CSFM, do not fit into the Solis range.
If you require ceiling fan control you will need to use the Wiser ZigBee fan controller, 41ECSFWMZ-VW, and either the toggle or push-button Wiser adaptor.
I want to connect the Push Button LED adaptor to Wiser ZigBee Dimmer instead of the Wiser rotary adaptor. Is this advisable?
Hide ShowThis is not advisable when the desired connection is for the Push Button LED adaptor to reflect status of the load as the LED won’t fully turn off. However, Push Button LED adaptor can be used with dimmer when always on LED indication is desired.
We recommend using the Wiser ZigBee dimmer with the rotary adaptor.
How can I dim the load using rotary Wiser dimmer adaptor in Solis or Solis T series?
Hide ShowDimming the load can be achieved by either rotating or long pressing the knob of the rotary adaptor.
Rotating the knob clockwise will dim the load up and anticlockwise will dim the load down. Long pressing the knob will also dim the load up/down which will be dependent on the previous direction of dimming.
Can I mix the Solis and Solis T Series socket cover plate?
Hide ShowNo, even if the cover plates are the same dimensions, using the alternate cover plate for the sockets will result in the product becoming non-compliant.
Will there be a cut out template for the Solis and Solis T range?
Hide ShowYes, cardboard templates will be provided as part of the product packaging.
I’m struggling to pair my Wiser ZigBee dimmer to the app via the Solis rotary Wiser dimmer adaptor, what should I do?
Hide ShowIf you are struggling to pair the device, factory reset the Wiser Dimmer and try pairing again. Factory reset is achieved by short pressing the knob 3 times (<0.5s) then long press the knob once (>10s). After 10s the LED will blink red, then re-lease the knob. Completion of factory reset will be indicated by observing the white LED on adaptor blinking for 8 seconds.
Can I use the rotary Wiser dimmer adaptor with 2AX and 10AX Wiser ZigBee Switches?
Hide ShowNo, the rotary wiser dimmer adaptor is for the Wiser ZigBee Dimmer only.
