Acti9 Arc fault detection circuit breaker iDPN N Arc, 1P+N 25A C 6000A

Item Number: A9FDB625

1 PCE 1

Where To Buy

Datasheet

Download

Product Dimensions

Width36 mm

Height81 mm

Depth72 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480943300	-
8	S02	43606480943308	-

Specifications

Design

Range of product	Acti9
Range	Acti9
Product or component type	arc fault detection circuit breaker

Physical

Standards	EN/IEC 62606 IEC 60898-1
[in] rated current	25 A at 30 °C
[ue] rated operational voltage	230 V AC 50 Hz conforming to IEC 62606 230 V AC 50 Hz conforming to EN/IEC 60898-1
Control type	toggle
Local signalling	ON, OFF, fault trip
Mounting mode	clip-on
Mounting support	DIN rail
Mechanical durability	20000 cycles
Electrical durability	10000 cycles 230 V AC 50 Hz
Cable entry	top
Connections - terminals	tunnel type terminal for 1 cable(s) 10-10 mm² flexible tunnel type terminal for 2 cable(s) 2.5-2.5 mm² flexible tunnel type terminal for 1 cable(s) 16-16 mm² rigid tunnel type terminal for 2 cable(s) 2.5-2.5 mm² rigid
Wire stripping length	14 mm
Height	81 mm
Width	36 mm
Depth	72 mm
Net weight	190 g
Ip degree of protection	IP20
Ambient air temperature for operation	-25...60 °C
Ambient air temperature for storage	-40...85 °C
Product certifications	RCM
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1312033EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circuit breaker application	distribution
Product name	Acti9 iDPN N Arc
Product specific application	fire prevention by arc detection
Device short name	iDPN N Arc
Poles description	1P + N
Curve code	C
Breaking capacity	6000 A Icn at 230 V AC 50 Hz conforming to EN/IEC 60898-1
Network type	AC
Neutral position	left
Trip unit technology	thermal-magnetic
Number of protected poles	1
Network frequency	50 Hz
Device location in system	outgoer
Magnetic tripping limit	5...10 x In
Limitation class	3 conforming to IEC 60898-1
Threshold tripping voltage	400 V 200 ms
[uimp] rated impulse withstand voltage	4 kV conforming to IEC 60898-1
[ui] rated insulation voltage	400 V AC
Contact position indicator	yes
Overvoltage category	III
Tightening torque	2 N.m
Comb busbar and distribution block compatibility	ProDis Librio
Connection pitch	9 mm between phase and neutral
9 mm pitches	4
Power losses per pole	6.5 W
Heat dissipation	7.24...7.24 W at 230 V - 25 A
Pollution degree	2
Tropicalisation	severity B conforming to IEC 60068-2-30 for 28 d
Operating altitude	2000 m
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.9 cm
Package 1 width	4.0 cm
Package 1 length	10.0 cm
Package 1 weight	139.0 g
Unit type of package 2	S02
Number of units in package 2	8
Package 2 height	15.0 cm
Package 2 width	30.0 cm
Package 2 length	40.0 cm
Package 2 weight	1.567 kg
Sustainable packaging	No
Pvc free	No
Halogen-free status	Product contains halogen above thresholds
Take-back	No
Average percentage of recycled metal content	0 %
Packaging without single use plastic	Yes
Scip number	b078722f-7853-4e1e-a05b-29638f57b0ab
Halogen-free status	Product contains halogen above thresholds
Pvc free	No
End of life manual availability	ENVEOLI1312033EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
End of Life Manual
Environmental Disclosure
Installation Instruction
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

Acti9 iDPN N Arc 1P-N 6A...25A C 6000A Arc fault detection circuit breaker - 3D CAD

VERSION

1.0

DATE

04 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.9 MB

ZIP

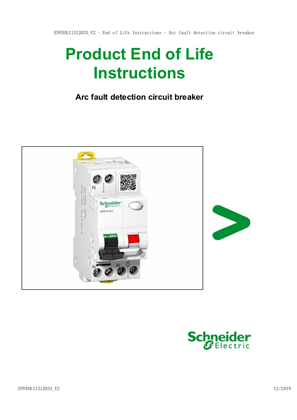

Arc fault detection circuit breaker - Product End of Life Instructions

VERSION

2.0

DATE

30 Apr 2024

REVISION

2.0

DOWNLOAD (ZIP) 229.2 KB

ZIP

Arc fault detection circuit breaker

VERSION

2.0

DATE

30 Apr 2024

REVISION

2.0

DOWNLOAD (ZIP) 391.9 KB

ZIP

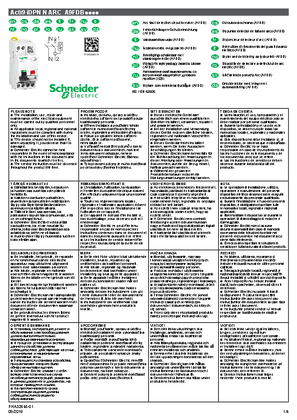

iDPN N Arc (AFFD) A9FDB6 - Instruction Sheet

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB

ZIP

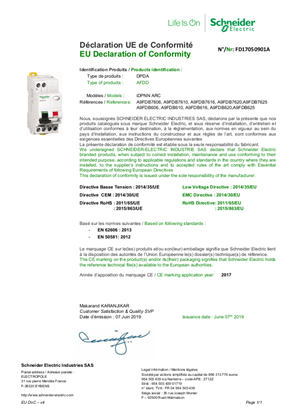

EU Declaration of Conformity Schneider Electric
