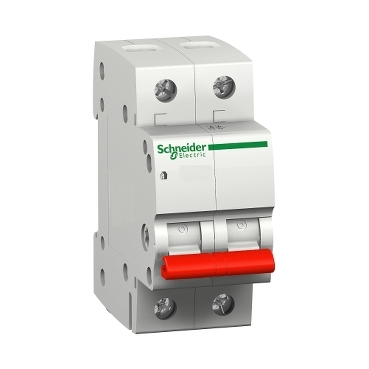

Domae Switch disconnector 63A 2-Pole 230VAC
Item Number: DCK12461
Product DCK12461 is replaced by R9S06291
View here.
Specifications
Design
| Range of product | Domae |
|---|---|
| Range | Domae |
| Product or component type | switch disconnector |
| Device application | switch |
Physical
| Standards |
|
|---|---|
| [ie] rated operational current | 63 A at 400 V AC 50/60 Hz |
| [ue] rated operational voltage | 400 V AC 50/60 Hz |
| Control type | toggle |
| Local signalling | ON/OFF indication |
| Mounting mode | clip-on |
| Mounting support | DIN rail |
| Height | 81 mm |
| Width | 36 mm |
| Depth | 74 mm |
| Net weight | 150 g |
| Mechanical durability | 50000 cycles |
| Electrical durability | 20000 cycles |
| Connections - terminals |
|
| Wire stripping length | 14 mm |
| Ip degree of protection | IP20 conforming to IEC 60529 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -5...55 °C |
| Ambient air temperature for storage | -25...70 °C |
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP110309EN |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
Documents & downloads
Filter items
-
All
-
CAD Files and Packs
-
End of Life Manual
-

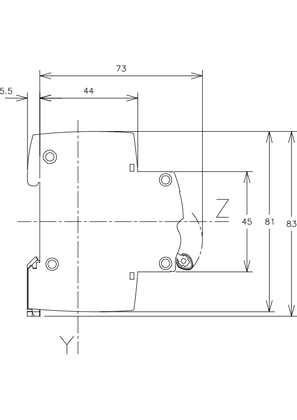

Technical Drawing
-
