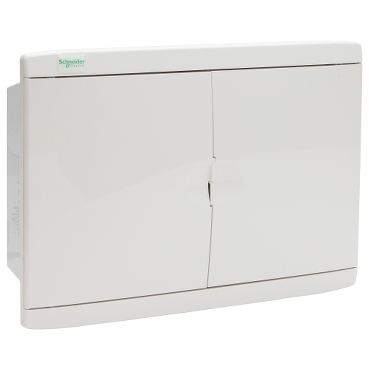

Superboard Series Distribution Board 15-Way 100A 415V Flush Mount ABS, Light Grey
Item Number: PDLDBF15
Product PDLDBF15 is replaced by R9HSB115F
View here.
Specifications
Design
Range of product
Superboard Series
Product or component type
distribution board
Colour tint
light grey
Surface finish
gloss
Physical
Installation direction
vertical
Width
376 mm
Height
258 mm
Depth
100 mm
Rated current
100 A
[ue] rated operational voltage
415 V
Mounting mode
flush-mounted
Quantity per set
set of 1
Type of packing
carton
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Rohs exemption information
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental disclosure
ENVPEP1602010EN
Circularity profile
N/A
Material
Material
ABS (acrylonitrile butadiene-styrene)
Others
Packaging made with recycled cardboard
Yes
Package 1 bare product quantity
1
Commercial status history
- SESA301466
- Tue May 21 01:12:00 EDT 2024
- From Import Local
- From 18 to 19
[ui] rated insulation voltage
1000 V
Cable cross section
25 mm²
Cut-out dimensions
335 x 223 x 80 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
10.5 cm
Package 1 width
27.0 cm
Package 1 length
38.5 cm
Package 1 weight
1.723 kg
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-
Quick Start Guide
-

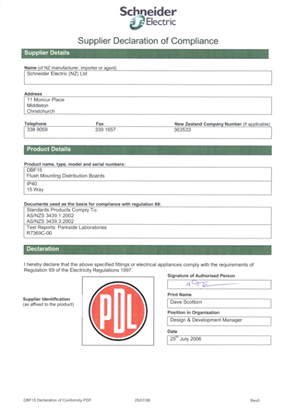

Declaration of Conformity
