900 Series Pendant Switch Cord Connector Socket + Plug 10A 3-Pin, White

Item Number: PDL927P

1 PCE 1

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175036033	-

Specifications

Design

Range of product	900 Series
Product or component type	socket
Colour tint	white
Surface finish	gloss

Physical

Installation direction	vertical
Rated current	10 A
[ue] rated operational voltage	230/240 V
Pin number	3
Connector type	combination #1 Phillips/slot screw
Quantity per set	set of 6
Type of packing	carton
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP120809EN
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	6
Package 3 bare product quantity	60
Package 4 bare product quantity	1200
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Network frequency	50 Hz
Cable cross section	0.75...1.5 mm²
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	16 cm
Package 1 width	5.5 cm
Package 1 length	5.5 cm
Package 1 weight	145 g
Unit type of package 2	BB1
Number of units in package 2	6
Package 2 height	9.1 cm
Package 2 width	13.7 cm
Package 2 length	17.7 cm
Package 2 weight	1.07 kg
Unit type of package 3	CAR
Number of units in package 3	60
Package 3 height	21 cm
Package 3 width	31 cm
Package 3 length	50 cm
Package 3 weight	11.2 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	5 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.7752929839026202
Carbon footprint of the manufacturing phase [a1 to a3]	0.8 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.04347664141773136
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.026615273899499053
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	3.4192
Carbon footprint of the use phase [b2, b3, b4, b6]	3 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.3554437544060069
Carbon footprint of the end-of-life phase [c1 to c4]	0.4 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	4.620028653625858
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Product Brochures
Quick Start Guide
Certificates (MSDS)
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

PDL, Electric Home Design Digital Magazine

VERSION

5.2

DATE

25 Aug 2026

REVISION

5.2

DOWNLOAD (ZIP) 7.4 MB

ZIP

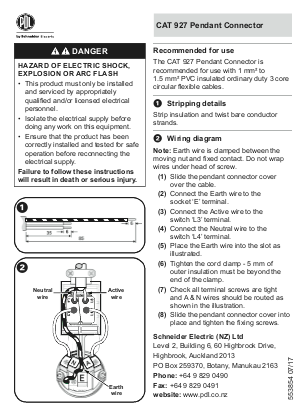

Wiring Accessories, wiring instruction sheet for PDL927 pendant suspension socket

VERSION

2.0

DATE

05 Oct 2023

REVISION

2.0

DOWNLOAD (ZIP) 362.4 KB

ZIP

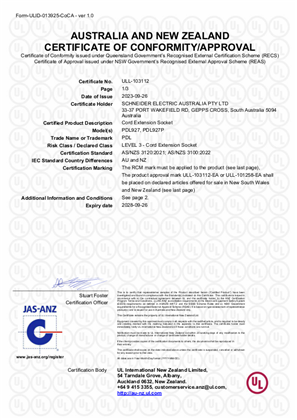

PDL, 927 cord extension socket outlet, Certificate, RCM, ULNZ LTD
