Datasheet
Close
Specifications
Design
Range of product
PDL General Accessories
Product or component type

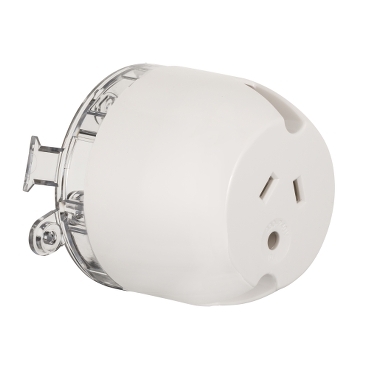

socket-outlet
Colour tint
white
Surface finish
glossy
Physical
Quantity per set
set of 10
Type of packing
carton
[in] rated current
10 A
[ue] rated operational voltage
250 V AC 50 Hz
Socket number
3
Installation direction
vertical
Device mounting
surface
Fixing center
40 mm
Ambient air temperature for operation
-10...40 °C
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental disclosure
ENVPEP1608003_V2
Circularity profile
ENVEOLI1608003_V2
Material
Material
PC (polycarbonate)
Others
Package 1 bare product quantity
1
Network number of phases
1 phase
Diameter
67 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5.6 cm
Package 1 width
6.6 cm
Package 1 length
9 cm
Package 1 weight
78.7 g
