Home ProductsIndustrial56 SeriesAuxillary Switch Contact. 15A 250V Silver Nickel

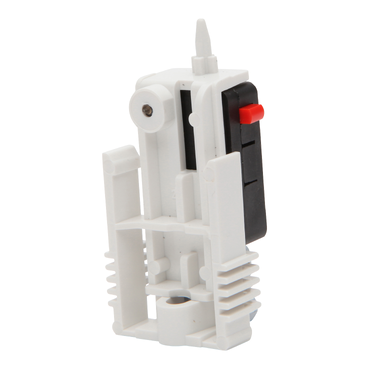

56 Series Auxillary Switch Contact. 15A 250V Silver Nickel Suits 56SW350/2

Qty	UoM	EAN	Colour
1	PCE	9416175078774	-
5	BB1	9416175251429	-
15	CAR	19416175078771	-

Specifications

Design

Physical

Control type	rotary
Rated current	15 A
[ue] rated operational voltage	240 V
Number of gangs	1 gang
Number of poles	1
Mounting mode	surface mounted
Ambient air temperature for operation	-40...55 °C
Quantity per set	set of 5
Type of packing	carton
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1208009EN
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)
Contacts material	silver nickel

Others

Package 1 bare product quantity	1
	Outside of Europe
Legacy weee scope	In
Weee label	N/A
Network frequency	50 Hz
Network number of phases	1 phase
Auxiliary contact composition	1 NO/NC
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2 cm
Package 1 width	6.5 cm
Package 1 length	8 cm
Package 1 weight	0.014 kg
Total lifecycle carbon footprint	0.8 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.0748558743078392
Carbon footprint of the manufacturing phase [a1 to a3]	0.1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.004197744688608546
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0025697505833999087
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.6410999999999999
Carbon footprint of the use phase [b2, b3, b4, b6]	0.6 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.03431870732195929
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Total lifecycle carbon footprint	0.7570420769018068
End of life manual availability	N/A
Warranty (in months)	18
