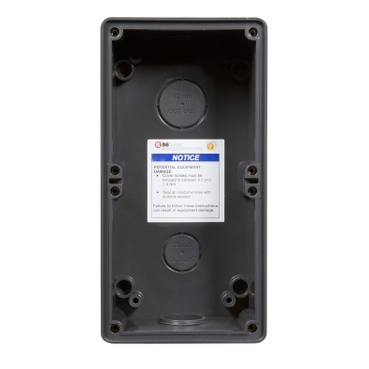

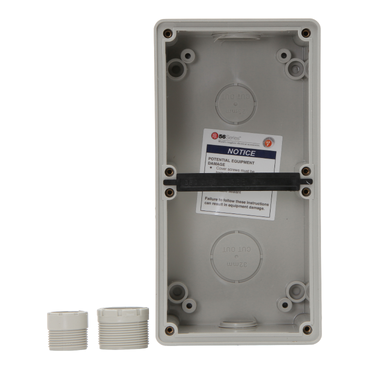

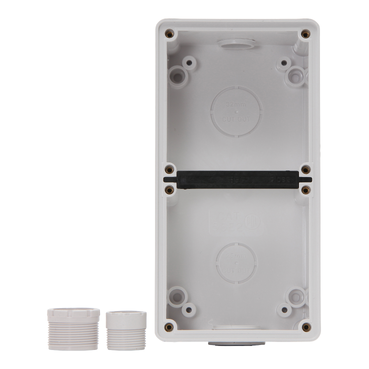

56 Series Enclosure 2-Gang 1x25mm 1x32mm IP66 | Chemical Resistant Grey
Item Number: PDL56E2CG
Specifications
Design
| Product or component type | enclosure |
|---|---|
| Market segment |
|
Physical
| Device mounting | surface |
|---|---|
| Mounting mode | wall-mounted |
| Net weight | 0.405 kg |
| Height | 198.0 mm |
| Width | 102.0 mm |
| Depth | 63.0 mm |
| Standards | AS 3100 |
| Ip degree of protection | IP66 conforming to AS 60529 |
| Ambient air temperature for operation | -25...75 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1508013EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PVC (polyvinyl chloride): housing |
|---|
