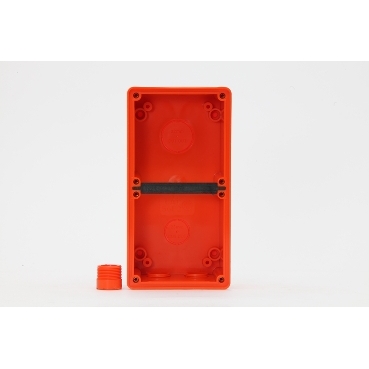

56 Series Enclosure 2-Gang 2x25mm Food Industry Grade IP66, Orange
Item Number: PDL56E2FOOD
Datasheet
Close
Specifications
Design
Range
56 Series
Product brand
PDL
Product or component type
enclosure
Surface finish
gloss
Colour tint
orange
Physical
Mounting mode
surface mounted
Installation direction
vertical
Fixing center
60 x 156 mm
Number of gangs
2 x 1 gang
Length
198 mm
Width
102 mm
Depth
63 mm
Quantity per set
set of 3
Type of packing
carton
Ambient air temperature for operation
-40...55 °C
Ip degree of protection
IP66
Mercury free
Yes
Rohs exemption information
Yes
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
PVC (polyvinyl chloride)
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.0 cm
Package 1 width
10.1 cm
Package 1 length
10.1 cm
Package 1 weight
222.2 g
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
