Home ProductsIndustrial56 SeriesEnclosure Lid

56 Series Enclosure Lid 1-Gang IP66 | Chemical Resistant Grey

Item Number: PDL56L1LECG

Chemical Resistant Grey 1 PCE 1

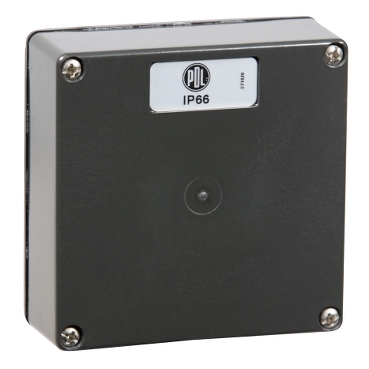

Charcoal Grey 1 PCE 1
Grey 1 PCE 1

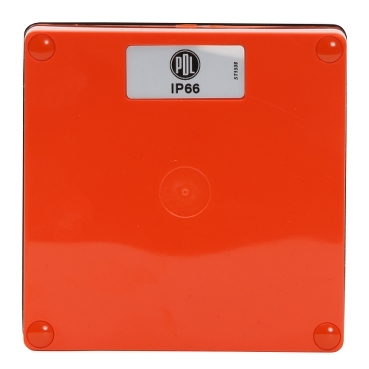

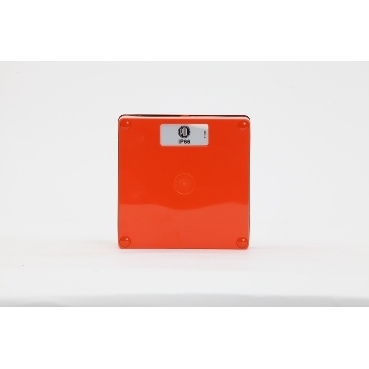

Chemical Resistant Orange 1 PCE 1
Chemical Resistant White 1 PCE 1

Where To Buy

Datasheet

Download

Product Dimensions

Width95.0 mm

Height95.0 mm

Depth28.0 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175246968	CG
8	BB1	9416175247866	CG
16	CAR	19416175246965	CG
1	PCE	9416175042126	CL
8	BB1	9416175248450	CL
16	CAR	19416175042123	CL
1	PCE	9416175042157	GY
8	BB1	9416175248467	GY
16	CAR	19416175042154	GY
1	PCE	9416175042188	RO
8	BB1	9416175248474	RO
16	CAR	19416175042185	RO
1	PCE	9416175159589	RW
8	BB1	9416175248481	RW
16	CAR	19416175159586	RW

Specifications

Design

Product or component type	enclosure
Market segment	small commercial industry utility

Physical

Device mounting	surface
Mounting mode	wall-mounted
Net weight	0.968 kg
Height	95.0 mm
Width	95.0 mm
Depth	28.0 mm
Standards	AS 3100
Ip degree of protection	IP66 conforming to AS 60529
Ambient air temperature for operation	-25...75 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1508013EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	PC: housing

Others

Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Legacy weee scope	Out
Weee exclusion rationale	Component not in scope – non independent function
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Component
Product name	56 Series
Device short name	PDL56L1LECG
Base dimension	95 x 95 mm
Targeted country	New Zealand
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.5 cm
Package 1 width	9.5 cm
Package 1 length	9.5 cm
Package 1 weight	82 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.6 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.323521657
Carbon footprint of the manufacturing phase [a1 to a3]	0.3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.024279047
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.005311161
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.20070025
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Product contains halogen above thresholds
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.553812116
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	5
Halogen-free status	Product contains halogen above thresholds
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
