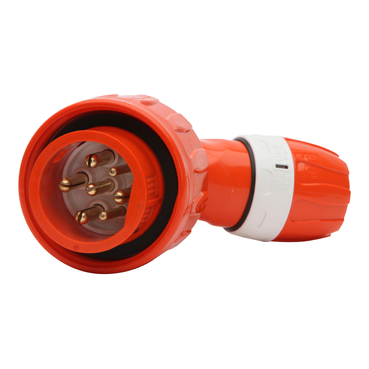

56 Series Plug Angled 20A 500V 3-Phase 7-Round Pin IP66 PBT, Chem Res Orange
Item Number: PDL56PAV720
Datasheet
Close
Specifications
Design
Range
56 Series
Product or component type
plug
Colour tint
orange
Surface finish
gloss
Physical
Rated current
20 A
[ue] rated operational voltage
500 V
Pin number
7
Ambient air temperature for operation
-40...55 °C
Quantity per set
set of 4
Type of packing
carton
Ip degree of protection
IP66
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP121020EN
Circularity profile
N/A
Material
Material
PBT (polybutylene terephthalate)
Others
Commercial status history
- SESA301466
- Thu Aug 17 21:46:00 EDT 2023
- From Import Local
- From 18 to 19
Package 1 bare product quantity
1
Network frequency
50 Hz
Network number of phases
3 phases
Cable cross section
7...16 mm²
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.360 kg
