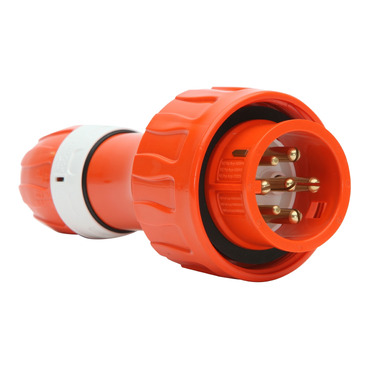

56 Series Plug Straight 20A 500V 3-Phase 7-Round Pin IP66 PBT, Chem Res Orange

56 Series Plug Straight 20A 500V 3-Phase 7-Round Pin IP66 PBT, Chem Res Orange

Item Number: PDL56PV720

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

56 Series

Product or component type

plug

Colour tint

orange

Surface finish

gloss

Sustainable offer status

Green Premium product

Physical

Rated current

20 A

[ue] rated operational voltage

500 V

Pin number

7

Ambient air temperature for operation

-40...55 °C

Quantity per set

set of 4

Type of packing

carton

Ip degree of protection

IP66

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP121020EN

Circularity profile

N/A

Material

Material

PBT (polybutylene terephthalate)

Others

Commercial status history

SESA301466 | Thu Aug 17 21:46:00 EDT 2023 | From Import Local | From 18 to 19

Package 1 bare product quantity

1

Network frequency

50 Hz

Network number of phases

3 phases

Cable cross section

1...6 mm²

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 weight

0.339 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Show all specifications
