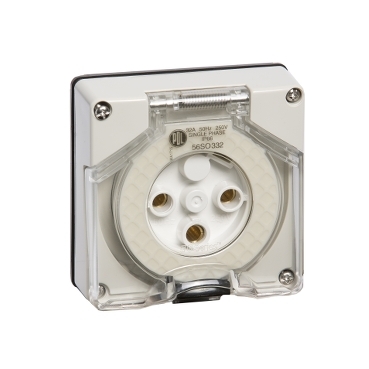

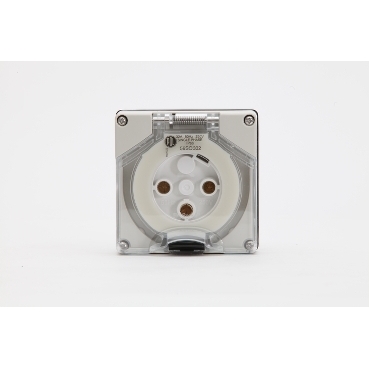

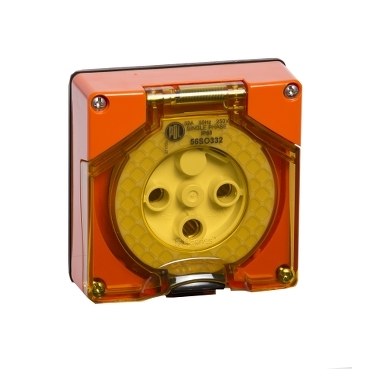

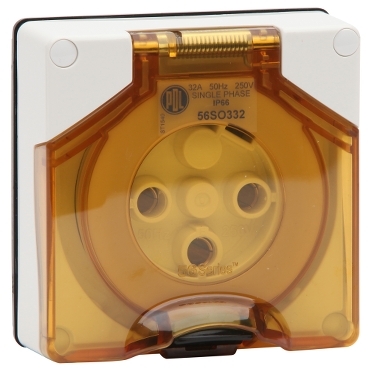

56 Series Socket 32A 250V 1-Phase 3-Round Pin IP66 | Chemical Resistant Orange

Item Number: PDL56SO332LERO

Grey 1 PCE 1
Chemical Resistant Orange 1 PCE 1
Chemical Resistant White 1 PCE 1

Where To Buy

Datasheet

Download

Product Dimensions

Width95 mm

Height95 mm

Depth35 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9416175038631	GY
4	BB2	9416175249648	GY
1	PCE	9416175038648	RO
4	BB1	9416175249655	RO
8	CAR	19416175038645	RO
1	PCE	9416175223082	RW
4	BB1	9416175249662	RW
8	CAR	19416175223089	RW

Specifications

Design

Range of product	56 Series™
Product brand	PDL
Product or component type	socket-outlet
Colour tint	grey
Surface finish	gloss

Physical

Quantity per set	set of 4
Type of packing	carton
Installation direction	vertical
Width	95 mm
Height	95 mm
Depth	35 mm
Rated current	32 A
[ue] rated operational voltage	250 V
Number of gangs	1 gang
Pin number	3
Mounting mode	surface mounted
Fixing center	84 x 84 mm
Ip degree of protection	IP66
Ambient air temperature for operation	-40...55 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2511024EN
Eu rohs directive	Compliant By Exemption

Material

Material	polycarbonate
Device composition	round pin

Others

Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Legacy weee scope	In
	Outside of Europe
Network frequency	50 Hz
Network number of phases	1 phase
Cable cross section	0.75...10 mm²
Main colour tint	grey
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7 cm
Package 1 width	9.5 cm
Package 1 length	9.5 cm
Package 1 weight	0.268 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	60 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	3.528598124647387
Carbon footprint of the manufacturing phase [a1 to a3]	4 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	1.4458328239358507
Carbon footprint of the distribution phase [a4]	1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0038157916085801167
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	54.53771938103293
Carbon footprint of the use phase [b2, b3, b4, b6]	55 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.47887522122966053
Carbon footprint of the end-of-life phase [c1 to c4]	0.5 kg CO2 eq.
Pvc free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	59.99484134245441
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
