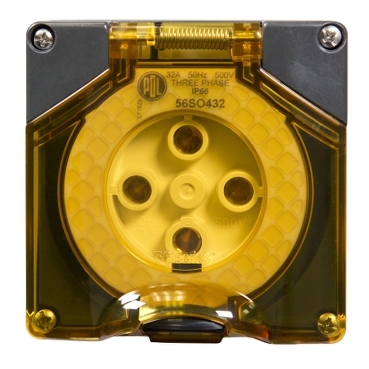

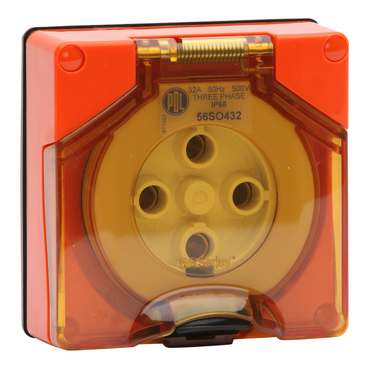

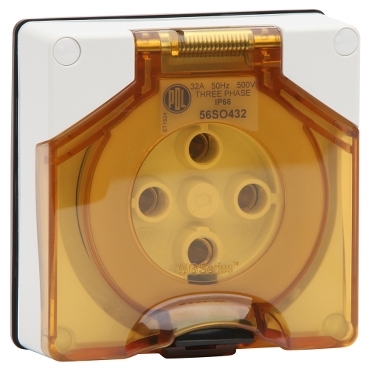

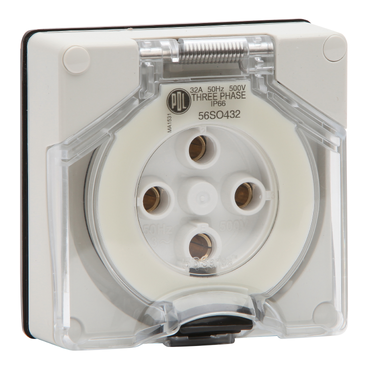

56 Series Socket 32A 500V 3-Phase 4-Round Pin IP66

Home ProductsIndustrial56 SeriesSocket

56 Series Socket 32A 500V 3-Phase 4-Round Pin IP66 | Chemical Resistant Grey

Item Number: PDL56SO432LECG

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width95.0 mm

Height icon

Height95.0 mm

Depth icon

Depth60.0 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range

56 Series

Product or component type

socket-outlet

Market segment

  • industry
  • utility
  • small commercial

Physical

Mounting mode

surface mounted

[in] rated current

32 A

Pin number

4 pins

[ue] rated operational voltage

500 V

Connections - terminals

screw terminals 4-16 mm² rigid or stranded cable

Wire stripping length

16 mm

Net weight

0.283 kg

Height

95.0 mm

Width

95.0 mm

Depth

60.0 mm

Standards

AS/NZS 3123

Ip degree of protection

IP66 conforming to AS 60529

Ambient air temperature for operation

-25...75 °C

Ambient air temperature for storage

-25...75 °C

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

polycarbonate: cover

Contacts material

pins: brass

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Finished product

Device short name

PDL56SO432LECG

Plug, socket category

low voltage

Poles description

3P + E

Network type

AC

Outlet standard deviation

Australian/New Zealand

Plug, socket, control station shape

straight

Shape of pin

tubular

Network frequency

50 Hz

Targeted country

  • Australia
  • New Zealand

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7 cm

Package 1 width

9.5 cm

Package 1 length

9.5 cm

Package 1 weight

283 g

Sustainable packaging

No

Pvc free

Yes

Halogen-free status

Product contains halogen above thresholds

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Halogen-free status

Product contains halogen above thresholds

Pvc free

Yes

Take-back

No

Warranty (in months)

18
Show all specifications
