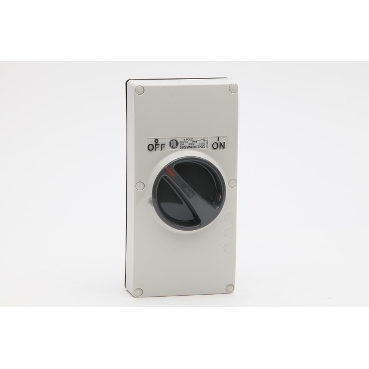

56 Series Switch Motor Rated 20A 500V 4-Pole 2-Gang IP66 | Grey
Item Number: PDL56SW4202KGLEGY
Specifications
Design
| Range of product | 56 Series™ |
|---|---|
| Product or component type | rotary switch |
| Colour tint | grey |
| Surface finish | gloss |
Physical
| Quantity per set | set of 4 |
|---|---|
| Type of packing | carton |
| Number of poles | 4 |
| Control type | rotary |
| Installation direction | vertical |
| Width | 95 mm |
| Height | 190 mm |
| Depth | 66 mm |
| Rated current | 20 A |
| [ue] rated operational voltage | 500 V |
| Number of gangs | 2 gangs |
| Mounting mode | surface mounted |
| Fixing center | 180 X 84 mm |
| Ip degree of protection | IP66 |
| Ambient air temperature for operation | -40...55 °C |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1208009EN |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|
