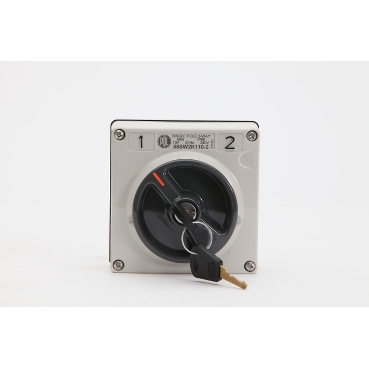

56 Series Switch Switch, 10A, 240V, 2-Way, 1-Pole, 2-Gang, Keylock | Grey
Item Number: PDL56SW2K1102LEGY
Specifications
Design
| Range of product | 56 Series™ |
|---|---|
| Product or component type | rotary switch |
| Colour tint | grey |
| Surface finish | gloss |
Physical
| Quantity per set | set of 4 |
|---|---|
| Type of packing | carton |
| Number of poles | 1 |
| Control type | rotary |
| Installation direction | vertical |
| Width | 95 mm |
| Height | 95 mm |
| Depth | 62 mm |
| Rated current | 10A/10AX |
| [ue] rated operational voltage | 240 V |
| Number of gangs | 1 gang |
| Mounting mode | surface mounted |
| Fixing center | 84 x 84 mm |
| Ip degree of protection | IP66 |
| Ambient air temperature for operation | -40...55 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP120506EN |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|
Documents & downloads
Filter items
-
All
-
Product Brochures
-
Quick Start Guide
-
Certificates (MSDS)
-
Declaration of Conformity (Sustainability)
ZIP
Schneider Electric, 30USM and 56 series switches, Certificate, RCM, ULNZ LTD
VERSION
1.2
DATE
11 Aug 2025
REVISION
1.2
DOWNLOAD (ZIP) 293 KB
ZIP
Schneider Electric, 56SW triple pole switches, Certificate, RCM, Global Mark Pty LTD
VERSION
1.2
DATE
11 Dec 2024
REVISION
1.2
DOWNLOAD (ZIP) 498.2 KB
ZIP
CA_GMA-510615-EA-Rev00_56SWxxx series Size 1 with the 30USM switch mech
VERSION
1.0
DATE
15 Aug 2024
REVISION
1.0
DOWNLOAD (ZIP) 262.5 KB
