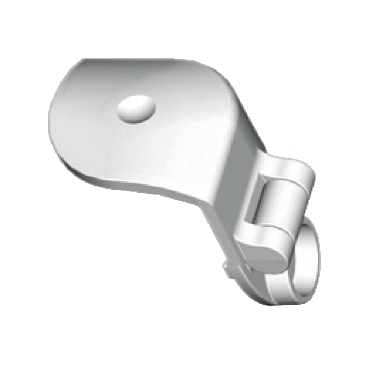

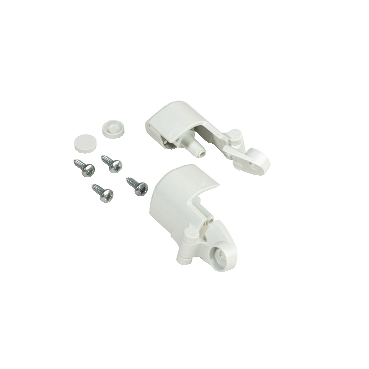

Thalassa Hinges for Cover Depth 40 mm, in ThermoPlastic PC with Screws

Item Number: NSYAEDH40TB

1 PCE 1

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480166419	-
100	CAR	23606480166413	-

Specifications

Design

Range	PanelSeT
Product or component type	hinge
Device application	multi-purpose
Warranty	18 months

Physical

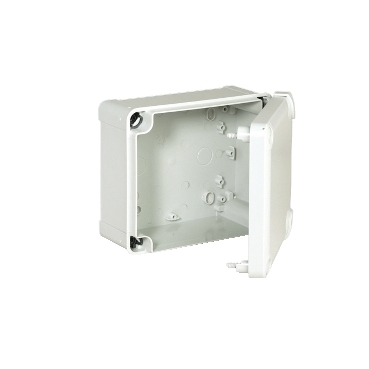

Range compatibility	PanelSeT TBS, TBP boxes, cover H:40 PanelSeT TBS, TBP boxes, cover H:20
Quantity per set	set of 1
Fixing mode	by screws - on cover location by fixing element - rear location
Net weight	0.035 kg
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Eu rohs directive	Compliant

Material

Device composition	fixing elements 2 x hinge

Others

Package 3 bare product quantity	8000
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Package 2 bare product quantity	200
Package 1 bare product quantity	2
Legacy weee scope	Out
If one of the deliverables is not relevant please give the reason	Accessory
Life cycle assessment data	No
Enclosure nominal dimensions	-
Operating angle	200 °
Maximum load	10 kg/m2
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.000 cm
Package 1 width	7.000 cm
Package 1 length	10.000 cm
Package 1 weight	36.000 g
Unit type of package 2	CAR
Number of units in package 2	100
Package 2 height	20.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	3.940 kg
Unit type of package 3	PAL
Number of units in package 3	4000
Package 3 height	100.000 cm
Package 3 width	100.000 cm
Package 3 length	125.000 cm
Package 3 weight	170.000 kg
Sustainable packaging	No
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Installation Instruction
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

PanelSeT TBP TBS - 2 x Hinges for cover HT2mm - Customised CAD drawing

VERSION

1.0

DATE

02 Jan 2025

REVISION

1.0

DOWNLOAD (ZIP) 447.8 KB

ZIP

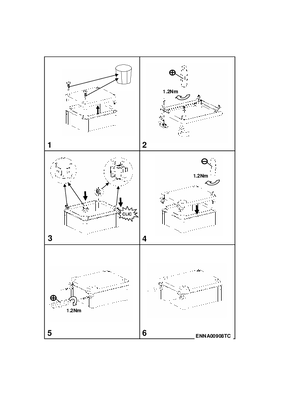

PanelSeT TBP TBS - Hinge for TBS TBP boxes - Instruction sheet
