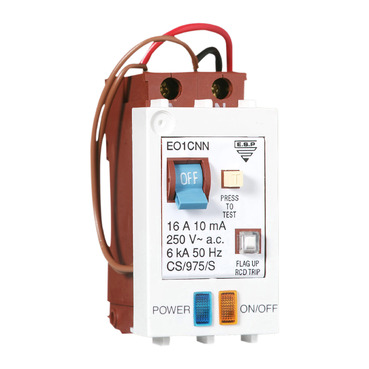

Medilec, RCD 1 Module, 2P, 16A, 10mA, 240V

Medilec, RCD 1 Module, 2P, 16A, 10mA, 240V

Item Number: E01CNN16

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Medilec|Clipsal - Series E01

Product or component type

residual current breaker with overcurrent protection (RCBO)

Product brand

Clipsal

Physical

[in] rated current

16 A

[ue] rated operational voltage

240 V AC

Protection type

short time short-circuit protection

Mounting support

DIN rail

Standards

AS/NZS 3190

Ambient air temperature for operation

-10...55 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Others

Package 1 bare product quantity

1

Poles description

2P

Earth-leakage sensitivity

10 mA

Earth-leakage protection class

class AC

Network frequency

50 Hz

Size

74 x 45 x 65 mm conforming to DIN 43880

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.2 cm

Package 1 width

9.2 cm

Package 1 length

11.7 cm

Package 1 weight

265.0 g
