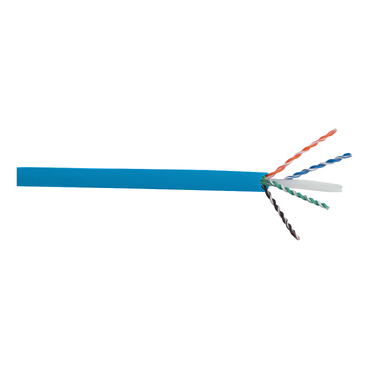

Actassi, Cable, Category 6A, 10G, UTP, 305m, Blue, CM

Actassi, Cable, Category 6A, 10G, UTP, 305m, Blue, CM BU

Item Number: ACTTG4P6AUCM3RBU

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Actassi

Product or component type

copper cable

Colour tint

blue

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Cable shielding type

U/UTP

Type of cable

4 pair cables

Communication network category

6<sub>A</sub>

Awg gauge

AWG 23

Cable outer diameter

7.3 mm

Ambient air temperature for operation

75 °C

Standards

ANSI/TIA-568-C.2|ISO/IEC 11801 Ea

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP110217EN

Circularity profile

N/A

Others

Commercial status history

SESA65410 | Tue Nov 14 17:55:00 EST 2023 | From Import Local | From 08 to 14

Package 1 bare product quantity

1

Minimum return loss

Guaranteed: 20 dB at 1 kHz|Guaranteed: 23 dB at 4 kHz|Guaranteed: 24.5 dB at 8 kHz|Guaranteed: 25 dB at 10 kHz|Guaranteed: 25 dB at 16 kHz|Guaranteed: 25 dB at 20 kHz|Guaranteed: 24.3 dB at 25 kHz|Guaranteed: 23.6 dB at 31.25 kHz|Guaranteed: 21.5 dB at 62.5 kHz|Guaranteed: 20.1 dB at 100 kHz|Guaranteed: 18 dB at 200 kHz|Guaranteed: 17.3 dB at 250 kHz|Guaranteed: 16.8 dB at 300 kHz|Guaranteed: 15.9 dB at 400 kHz|Guaranteed: 15.2 dB at 500 kHz

Attenuation

Guaranteed: 2.1 dB @ 1 MHz per 100 m cable|Guaranteed: 3.8 dB @ 4 MHz per 100 m cable|Guaranteed: 5.3 dB @ 8 MHz per 100 m cable|Guaranteed: 5.9 dB @ 10 MHz per 100 m cable|Guaranteed: 7.5 dB @ 16 MHz per 100 m cable|Guaranteed: 8.4 dB @ 20 MHz per 100 m cable|Guaranteed: 9.4 dB @ 25 MHz per 100 m cable|Guaranteed: 10.5 dB @ 31.25 MHz per 100 m cable|Guaranteed: 15 dB @ 62.5 MHz per 100 m cable|Guaranteed: 9.1 dB @ 100 MHz per 100 m cable|Guaranteed: 27.6 dB @ 200 MHz per 100 m cable|Guaranteed: 31.1 dB @ 250 MHz per 100 m cable|Guaranteed: 34.3 dB @ 300 MHz per 100 m cable|Guaranteed: 40.1 dB @ 400 MHz per 100 m cable|Guaranteed: 45.3 dB @ 500 MHz per 100 m cable

Power sum alien near-end crosstalk [psanext]

67 dB at 1 MHz|67 dB at 4 MHz|67 dB at 8 MHz|67 dB at 10 MHz|67 dB at 16 MHz|67 dB at 20 MHz|67 dB at 25 MHz|67 dB at 31.25 MHz|65.6 dB at 62.5 MHz|65.6 dB at 100 MHz|58 dB at 200 MHz|56.5 dB at 250 MHz|55.3 dB at 300 MHz|53.5 dB at 400 MHz|52 dB at 500 MHz

Power sum attenuation to alien crosstalk ratio far-end [psaacrf]

66.2 dB at 4 MHz|60.1 dB at 8 MHz|58.2 dB at 10 MHz|54.1 dB at 16 MHz|52.2 dB at 20 MHz|50.2 dB at 25 MHz|48.3 dB at 31.25 MHz|42.3 dB at 62.5 MHz|38.2 dB at 100 MHz|32.2 dB at 200 MHz|30.2 dB at 250 MHz|28.7 dB at 300 MHz|26.2 dB at 400 MHz|24.2 dB at 500 MHz

Near end crosstalk [next]

Guaranteed: 74.3 dB at 1 MHz |Guaranteed: 65.3 dB at 4 MHz |Guaranteed: 60.8 dB at 8 MHz |Guaranteed: 59.3 dB at 10 MHz |Guaranteed: 56.2 dB at 16 MHz |Guaranteed: 54.8 dB at 20 MHz |Guaranteed: 53.3 dB at 25 MHz |Guaranteed: 51.9 dB at 31.25 MHz |Guaranteed: 47.4 dB at 62.5 MHz |Guaranteed: 44.3 dB at 100 MHz |Guaranteed: 39.8 dB at 200 MHz |Guaranteed: 38.3 dB at 250 MHz |Guaranteed: 37.1 dB at 300 MHz |Guaranteed: 35.3 dB at 400 MHz |Guaranteed: 33.8 dB at 500 MHz

Input impedance

100 Ohm (+/- 15 %) at 1-100 MHz|100 Ohm (+/- 22 %) at 100-250 MHz

Maximum loop resistance

72 Ohm

Capacitance unbalance

330 pF / 100 m

Wire insulation material

PE

Conductor material

solid bare copper

Cable length

305 m

Cable weight

17 kg

Flame retardance

CM

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

11.0 cm

Package 1 width

33.0 cm

Package 1 length

35.0 cm

Package 1 weight

13.5 kg
