Actassi HD Fusion Splice Tray Kit Max 24 Fiber

Item Number: ACTFMSPTKIT

1 PCE 1

This 19-HD fusion splice tray kit is delivered with one complete splice tray unit and accessories of one tray cover. Two fibre management half-spools, two fusion splice holders, twenty-four heat shrink tubes, one PG17 cable gland and supporter, and two sets of screw and nuts. Maximum three fusion splice trays can be stacked inside 1U 19-HD fibre panel.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	4892552922918	-
36	CAR	44892552922916	-

Specifications

Design

Range	Actassi
Product or component type	optic splice cassette
Colour	cassette: grey
Product destination	empty fibre optic panel

Physical

Range compatibility	Actassi 19” fibre optic panel
Fixing mode	by 2 screws with fibre patch panel by rivet with fibre patch panel with quick-fix function
Length	155.2 mm
Height	10 mm
Width	92.4 mm
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1303001
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Material

Device composition	1 cover 1 splice tray 2 insert 2 cable disc 1 cable gland 1 cable gland holder 4 screw 4 nut 30 heat shrink splice protector tube 4 ring
Material	ABS (acrylonitrile butadiene-styrene)

Others

Package 1 bare product quantity	1
Package 2 bare product quantity	36
Package 3 bare product quantity	432
Legacy weee scope	Out
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Weee applicability	Finished product
Average percentage of recycled plastic content	0 %
	At least in Europe
Number of port	24
Targeted region	Asia Pacific. Europe
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.5 cm
Package 1 width	18.8 cm
Package 1 length	19.2 cm
Package 1 weight	258.0 g
Unit type of package 2	CAR
Number of units in package 2	36
Package 2 height	30.0 cm
Package 2 width	39.7 cm
Package 2 length	59.8 cm
Package 2 weight	9.988 kg
Unit type of package 3	P12
Number of units in package 3	432
Package 3 height	102.0 cm
Package 3 width	80.0 cm
Package 3 length	120.0 cm
Package 3 weight	132.356 kg
Total lifecycle carbon footprint	3 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.4100396423511063
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.5113078914176613
Carbon footprint of the distribution phase [a4]	0.5 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.044014215012637865
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.6050600664852345
Carbon footprint of the end-of-life phase [c1 to c4]	0.6 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Halogen free product
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	2.57042181526664
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
China rohs label	1
Halogen-free status	Halogen free product
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Technical Data Catalogues
Environmental Disclosure
Installation Instruction
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

Actassi HD Fusion Splice Tray Kit Max 24 Fiber

Item Number: ACTFMSPTKIT

Colour ()

Datasheet

Barcode

Specifications

Documents & downloads

All

Technical Data Catalogues

Environmental Disclosure

Installation Instruction

Declaration of Conformity (Sustainability)

The Actassi system

Actassi

Clipsal Datacomms Product Selection Guide Ed.13

High density solutions for data centres

Actassi Patch Panel Sliding Evo 19 - Product Environment Profile

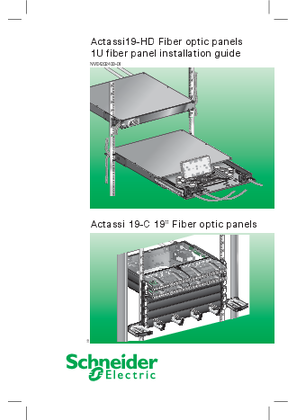

Actassi Optic panel 1U HD & Actassi 1U 19C digital installation guide
