Specifications
Design
Range
Fire Tek
Product brand
Clipsal
Product or component type
smoke detector
Device application
early detection of smouldering fires and open fires
Physical
Supply
mains
[ue] rated operational voltage
9/230 V
Function available
local alarm
Control type
button (test/hush function)
Type of installation
indoor
Device mounting
surface
Mounting support
ceiling
Fixing mode
by screws
Ip degree of protection
IP20
Ambient air temperature for operation
0...45 °C
Ambient air temperature for storage
-20...60 °C
Relative humidity
5...95 %
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Material
Material
thermoplastic
Others
Package 1 bare product quantity
1
Electronic sensor type
photo-electric sensor
[us] rated supply voltage
220...240 V AC 50 Hz
Detection type
heat
Noise level
85 dB at 3 m, minimum
Time delay range
10 min (hush)
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
11 cm
Package 1 width
15 cm
Package 1 length
15 cm
Package 1 weight
402 g
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-

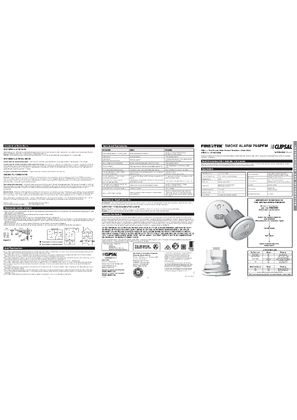

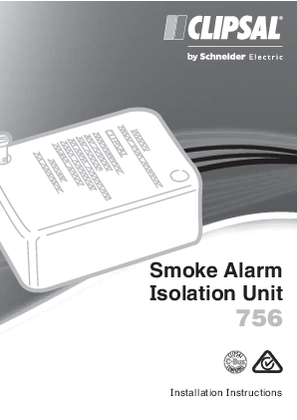

Installation Instruction
-
Declaration of Conformity
Frequently Asked Questions
hide show
The dust inside the smoke alarms can cause a continuous beep.
Please follow the regular maintenance check to avoid this.
Vacuum the smoke alarms using a soft brush attachment-
Keeping your smoke alarm free of dust particles, dirt, kitchen grease or cobwebs will help you reduce false alarms and ensure any smoke can easily reach the internal sensing chamber.
Clean and wipe down around unit-
Clean around the smoke alarm unit and remove any insects or other contamination which may have occurred. Spray bug repellent on a cloth and wipe the ceiling around the smoke alarm to act as a future bug deterrent. Clean every 3-6 months to mitigate insect ingress.
ALWAYS TEST THE SMOKE ALARM AFTER CLEANING.
Attached is the Clipsal smoke alarm troubleshooting guide for more info.
Please follow the regular maintenance check to avoid this.
Vacuum the smoke alarms using a soft brush attachment-
Keeping your smoke alarm free of dust particles, dirt, kitchen grease or cobwebs will help you reduce false alarms and ensure any smoke can easily reach the internal sensing chamber.
Clean and wipe down around unit-
Clean around the smoke alarm unit and remove any insects or other contamination which may have occurred. Spray bug repellent on a cloth and wipe the ceiling around the smoke alarm to act as a future bug deterrent. Clean every 3-6 months to mitigate insect ingress.
ALWAYS TEST THE SMOKE ALARM AFTER CLEANING.
Attached is the Clipsal smoke alarm troubleshooting guide for more info.
